35,000 and 50,000 m³/h heavy-duty metal evaporative air coolers for large industrial facilities
Heavy-duty metal commercial evaporative cooler series at 35,000 or 50,000 m³/h. Centrifugal fan, 380-415V three-phase, remote control, top or side air discharge for large industrial facilities.
Why Choose This Model
Metal shell construction with strong structure, corrosion resistance and anti-aging
Centrifugal fan with double-sided air inlet, rated at 350Pa for the 35 series and 500Pa for the 50 series

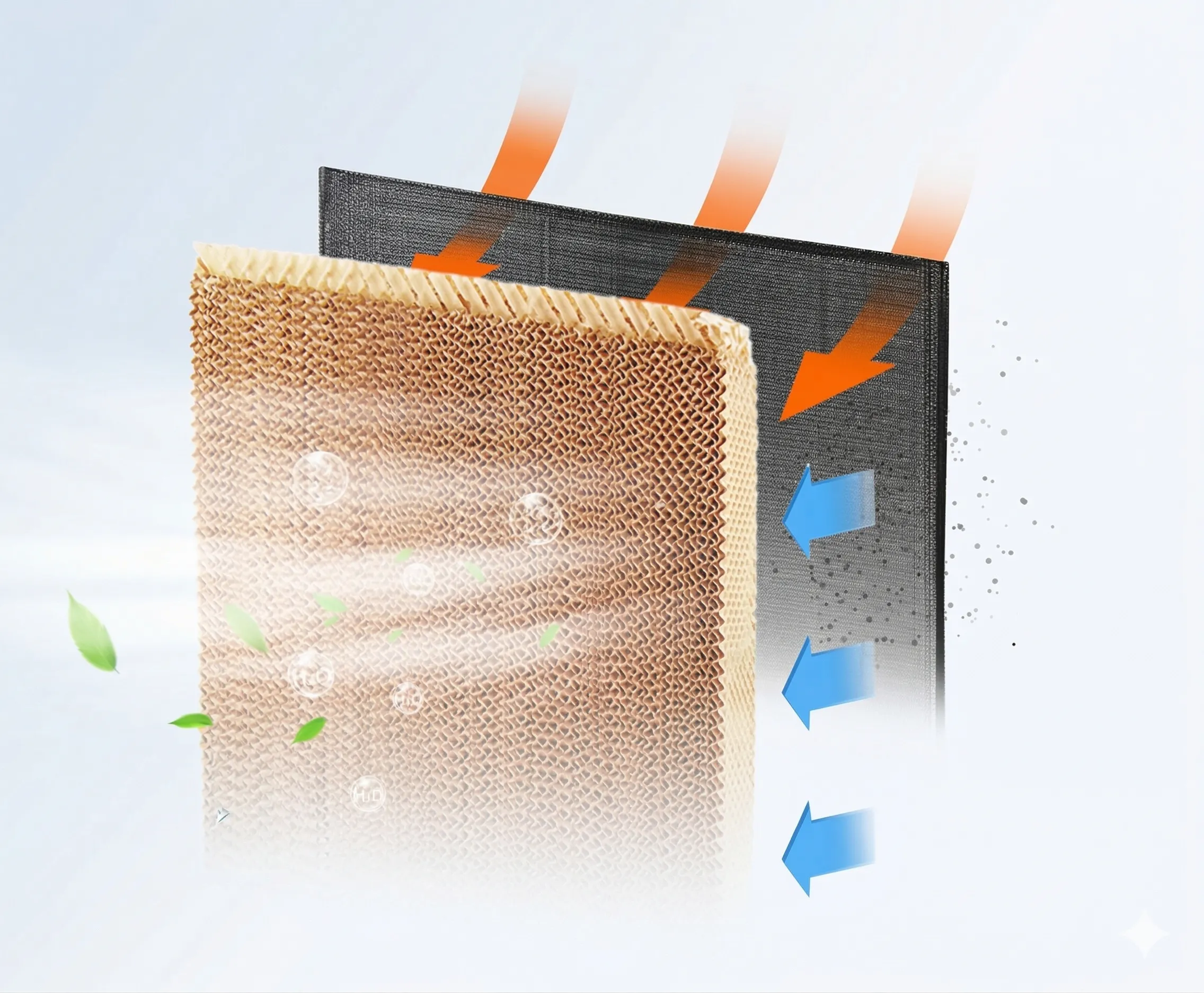

Advanced evaporative cooling pads for superior performance
Fixed 8kW motor for the 35 series and 15.5kW motor for the 50 series
Dust filter protects cooling pad, easy to clean and maintain
Core Advantages
Explore the engineering behind the JH35LM / JH50LM metal evaporative cooler family.

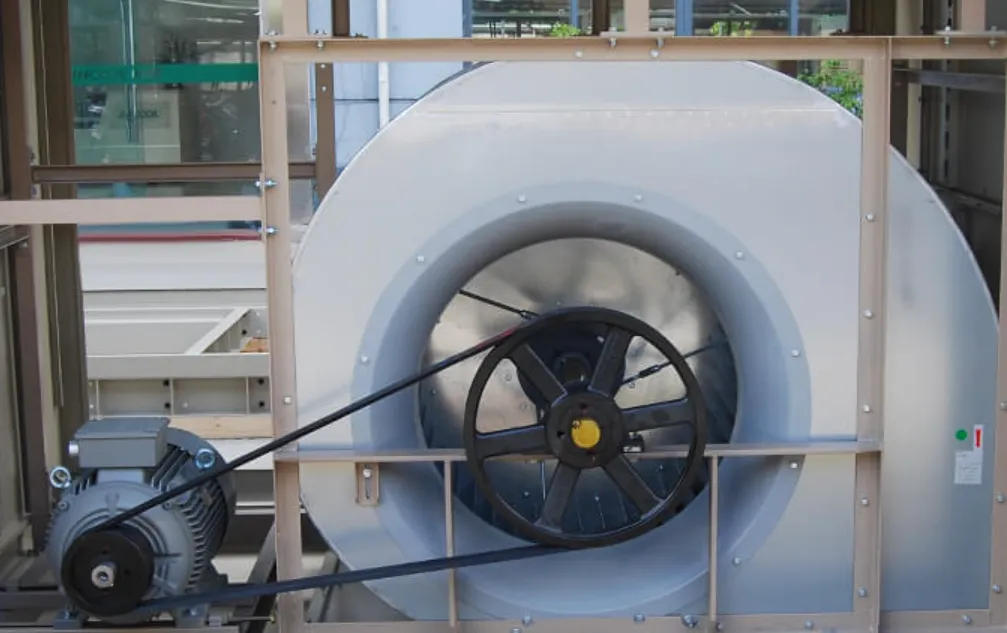

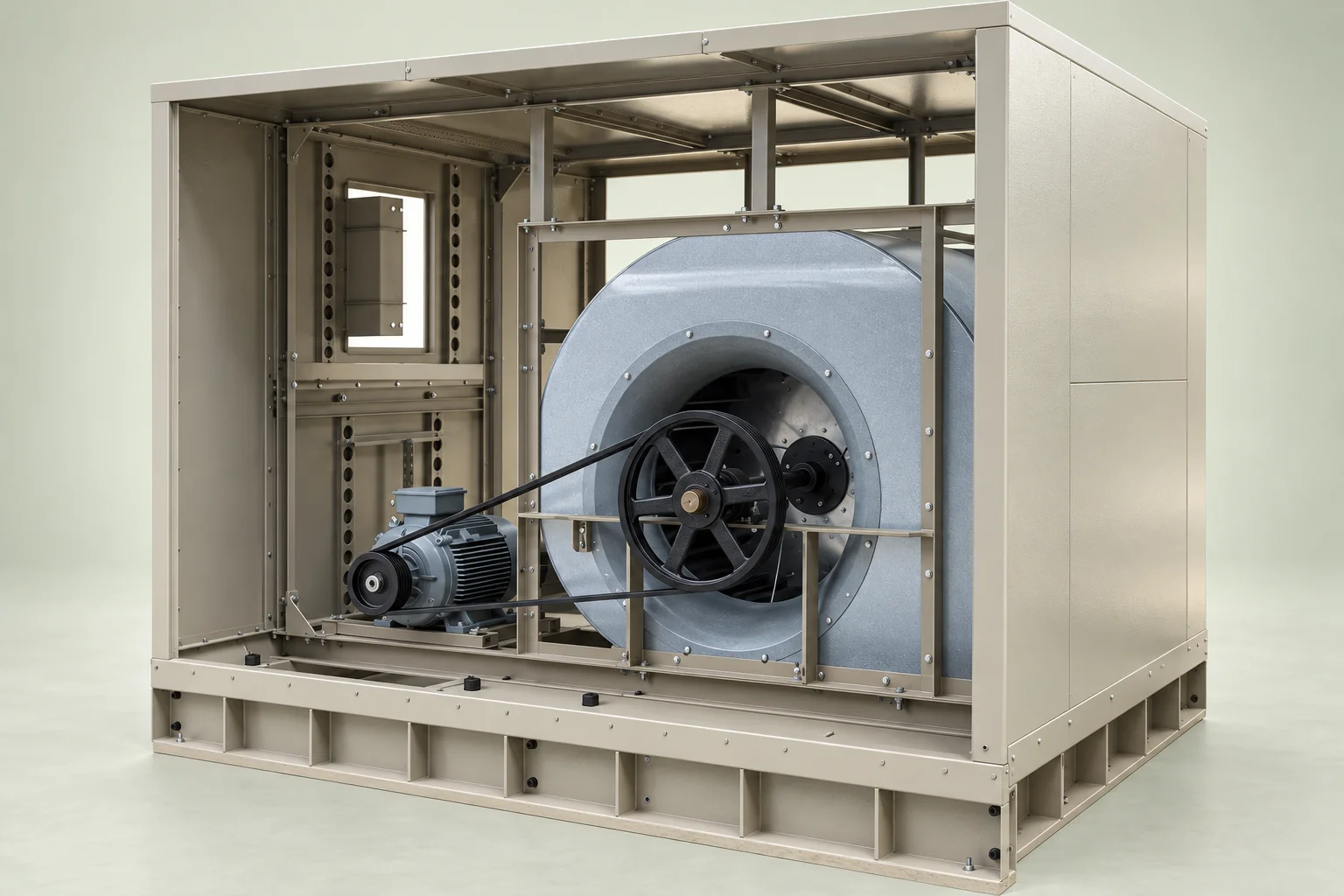

A separate motor drives the centrifugal blower through a small motor pulley, a V-belt and a larger fan pulley. The double-inlet blower supplies high-volume air for ducted industrial cooling.

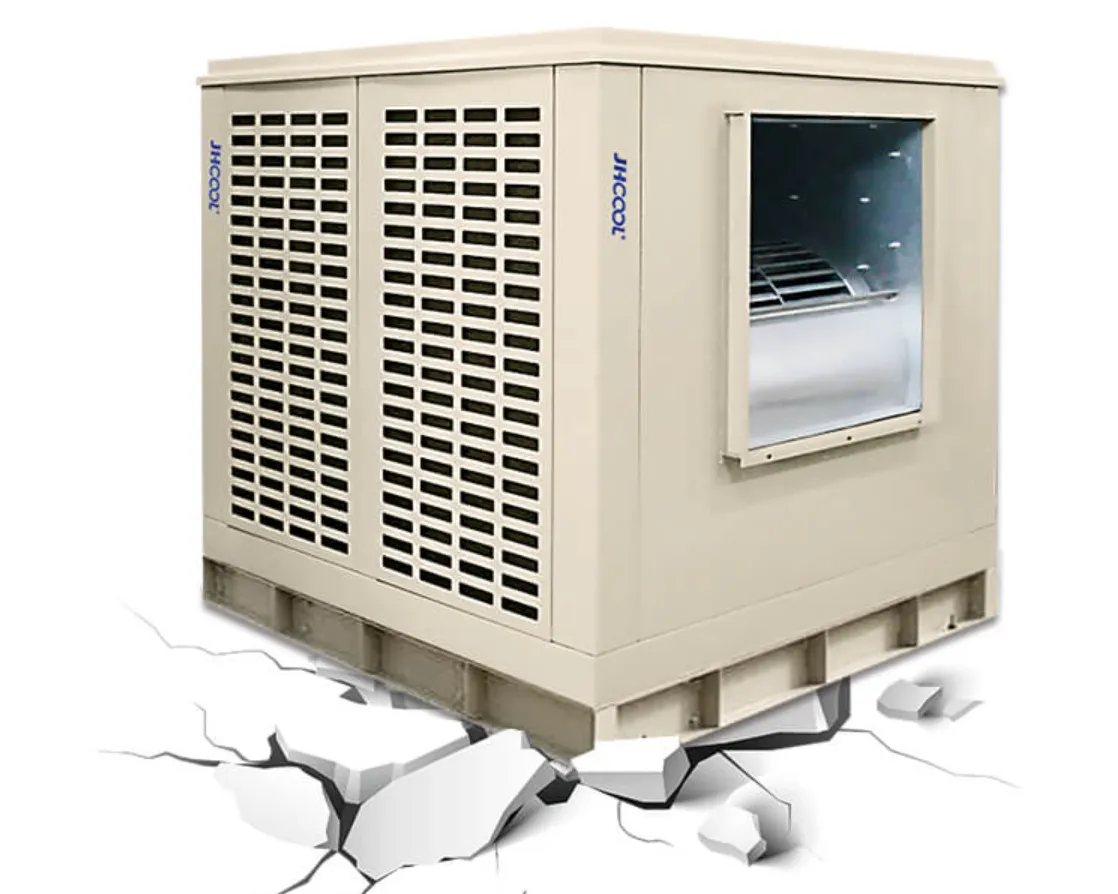

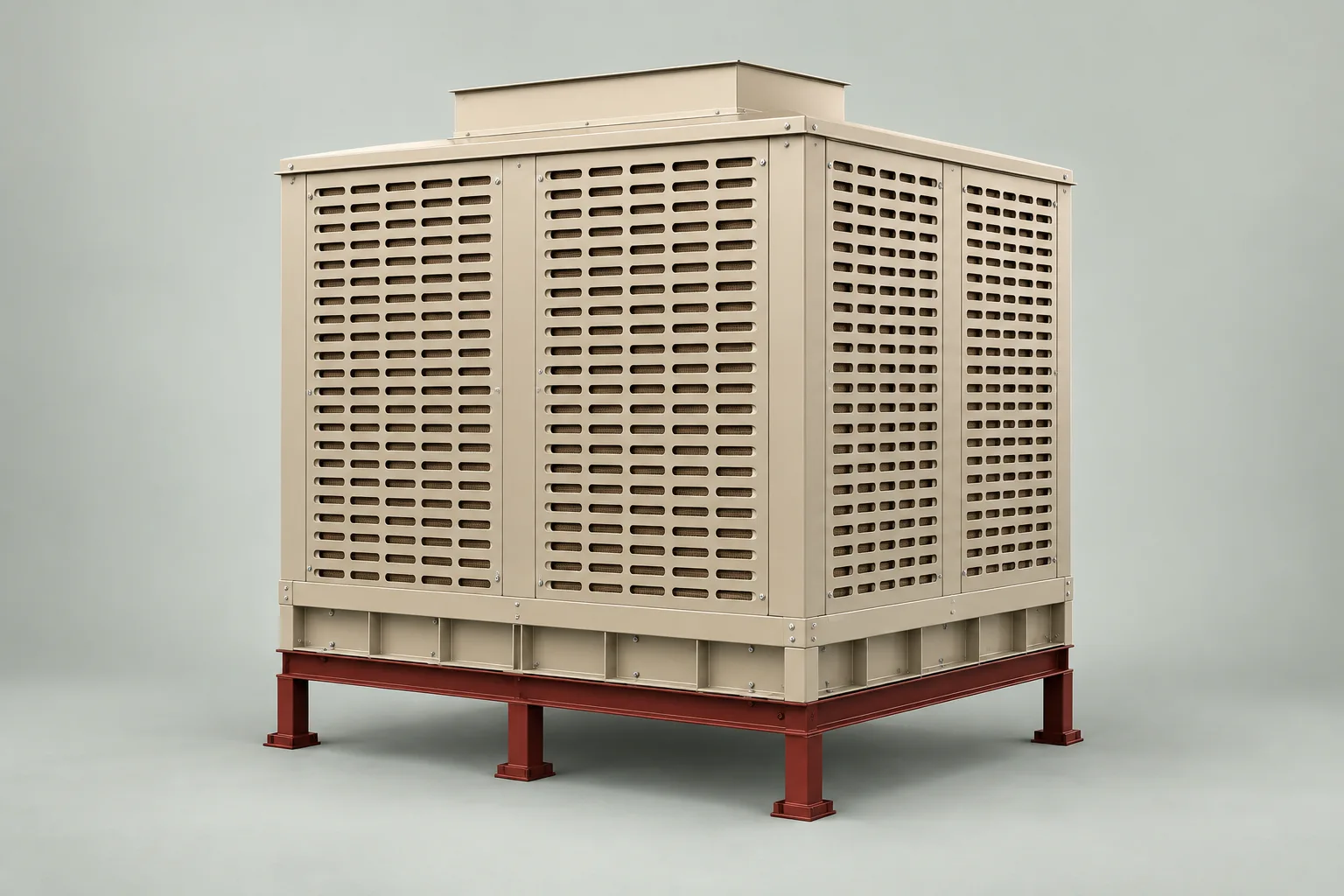

A rigid metal cabinet combines structural strength with resistance to corrosion and ageing.

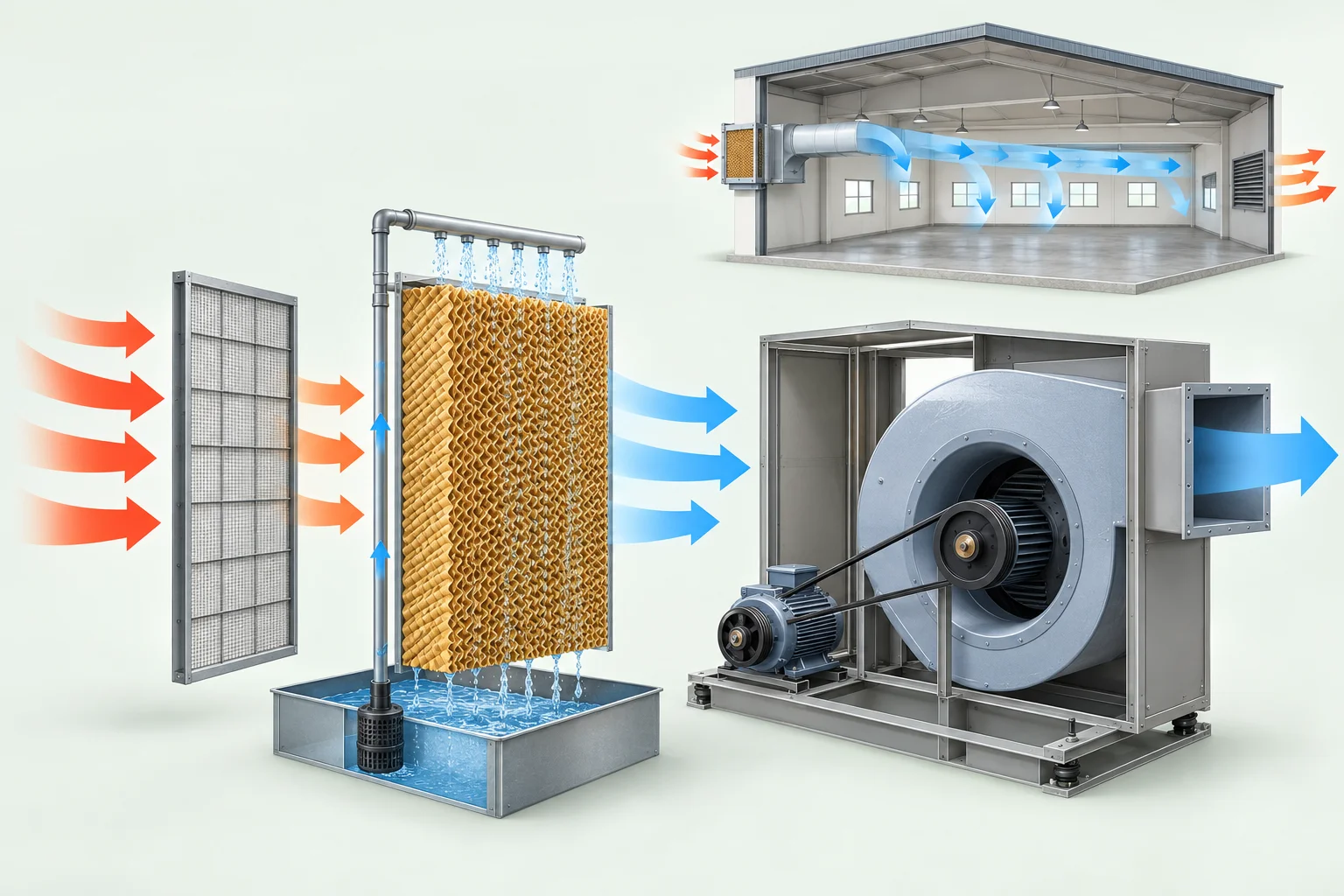

Outside air passes through the dust filter and wetted cellulose pad. Water evaporation absorbs heat; the downstream centrifugal fan delivers the cooled air indoors, while an outlet allows room air to escape.

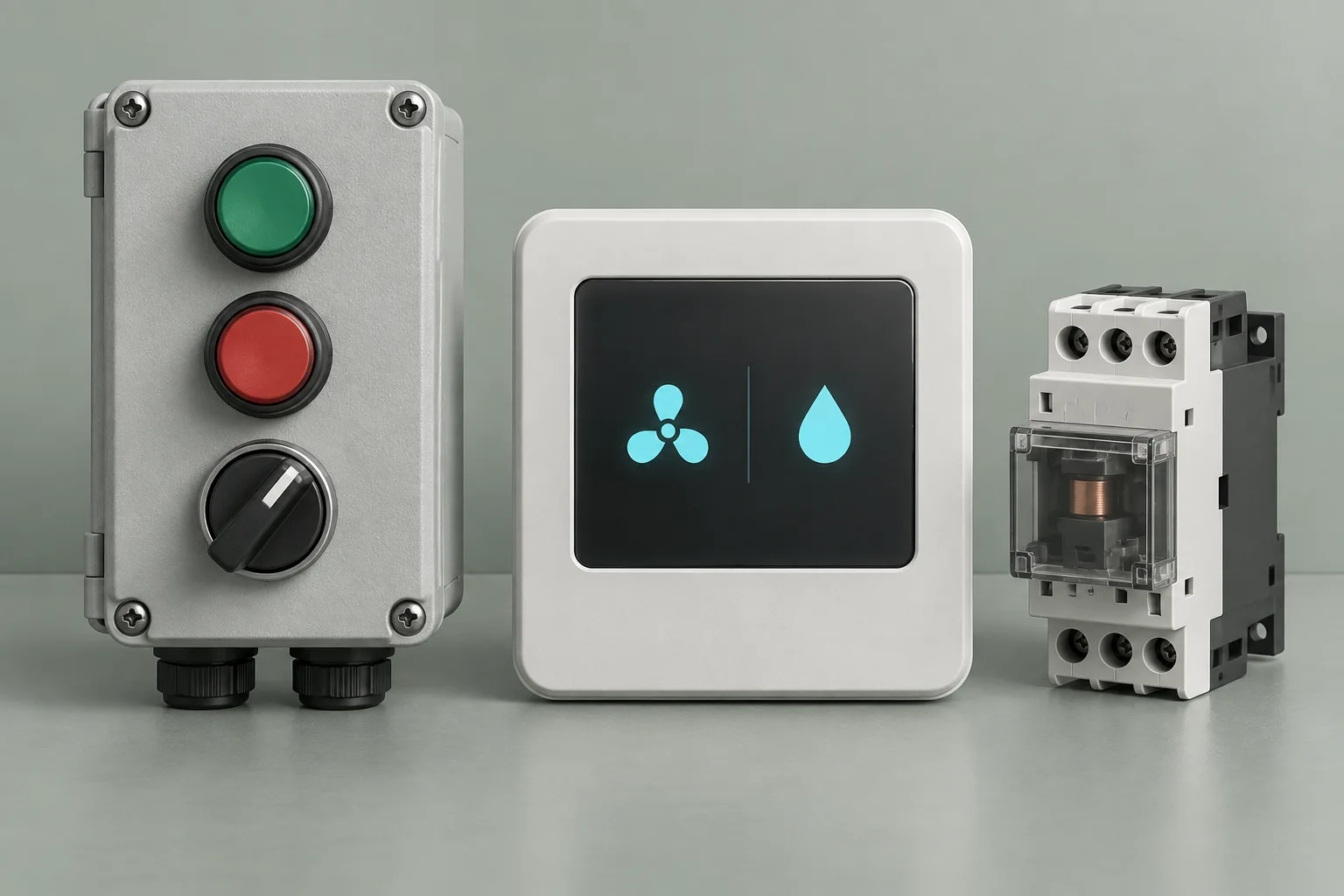

Select industrial buttons or LCD control, with overvoltage and overcurrent protection. Speed options depend on the configuration.
Illustrations show operating principles. Components and available functions depend on the selected configuration.

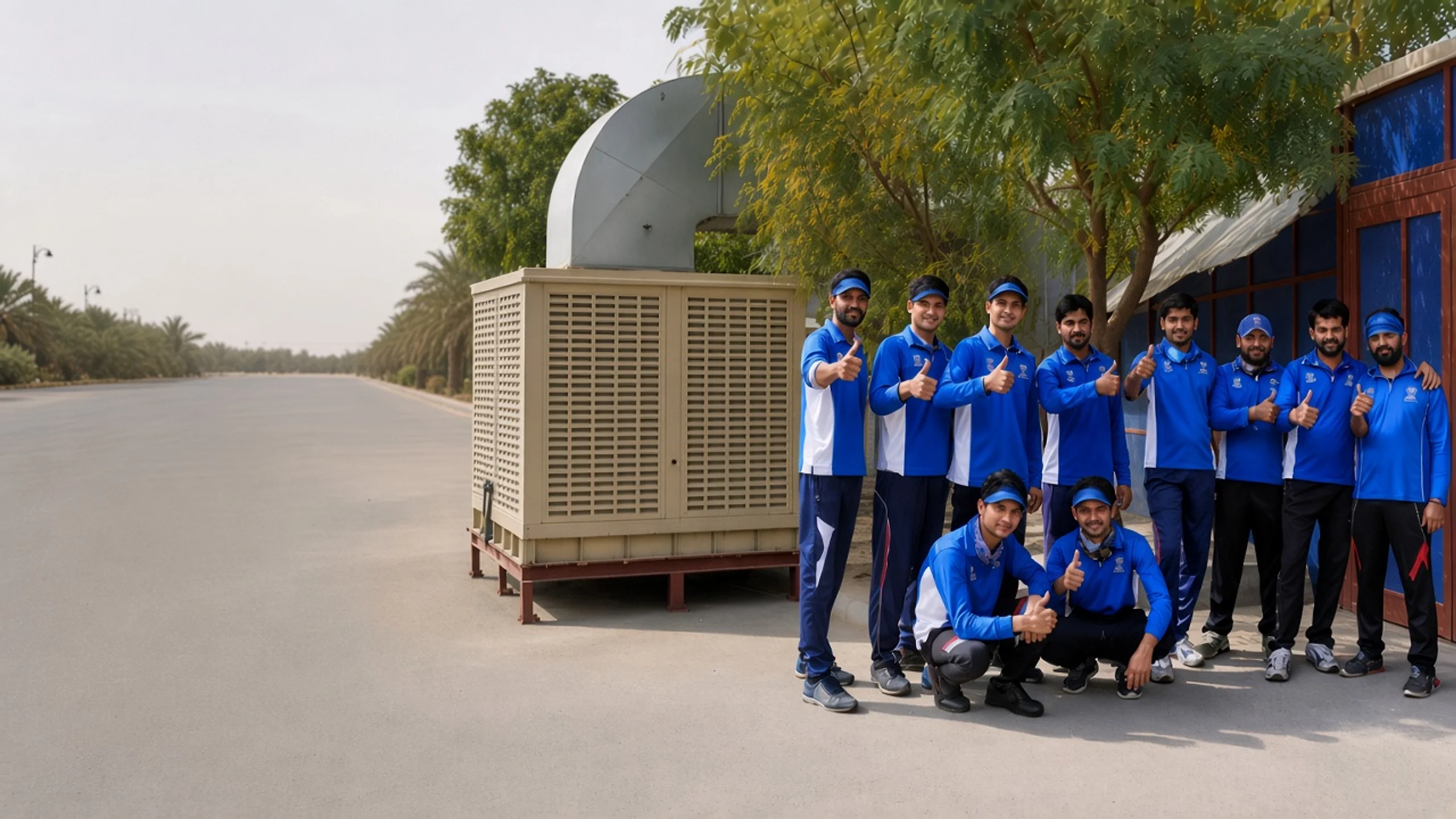

Dubai, UAE · Equestrian Facility
A 50-series industrial air cooler deployed at the King's Horse Ranch in Dubai keeps stables and outdoor training areas cool in extreme desert heat — delivering high airflow across large open spaces with reliable, low-noise operation.

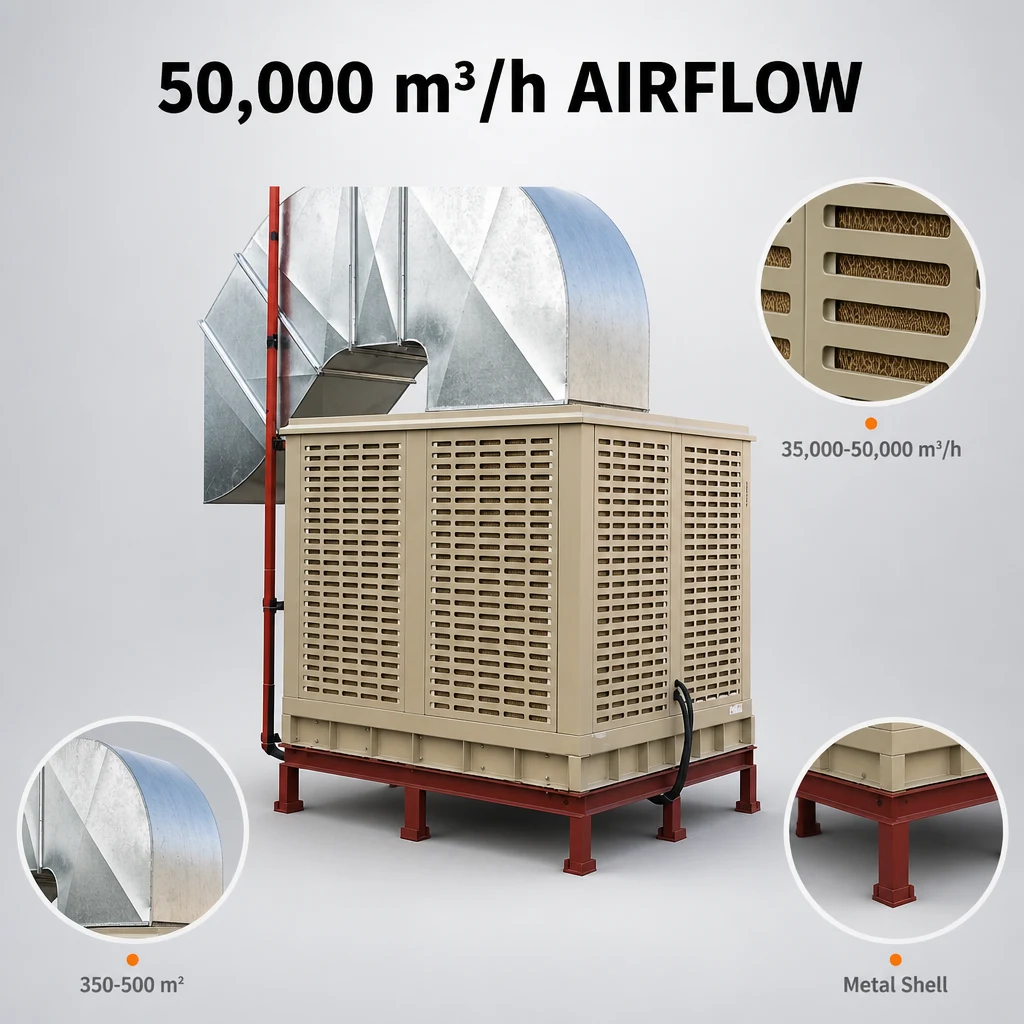

Airflow
35,000 / 50,000 m³/h
Coverage
220-350 / 350-500 m²
Power
8kW / 15.5kW
Dimension
1750×1665×1480 / 2125×2100×1845 mm
Send us your requirements and our sales team will follow up.
