Industrial-scale airflow
High-volume cooling for manufacturing and logistics heat loads.
1/11

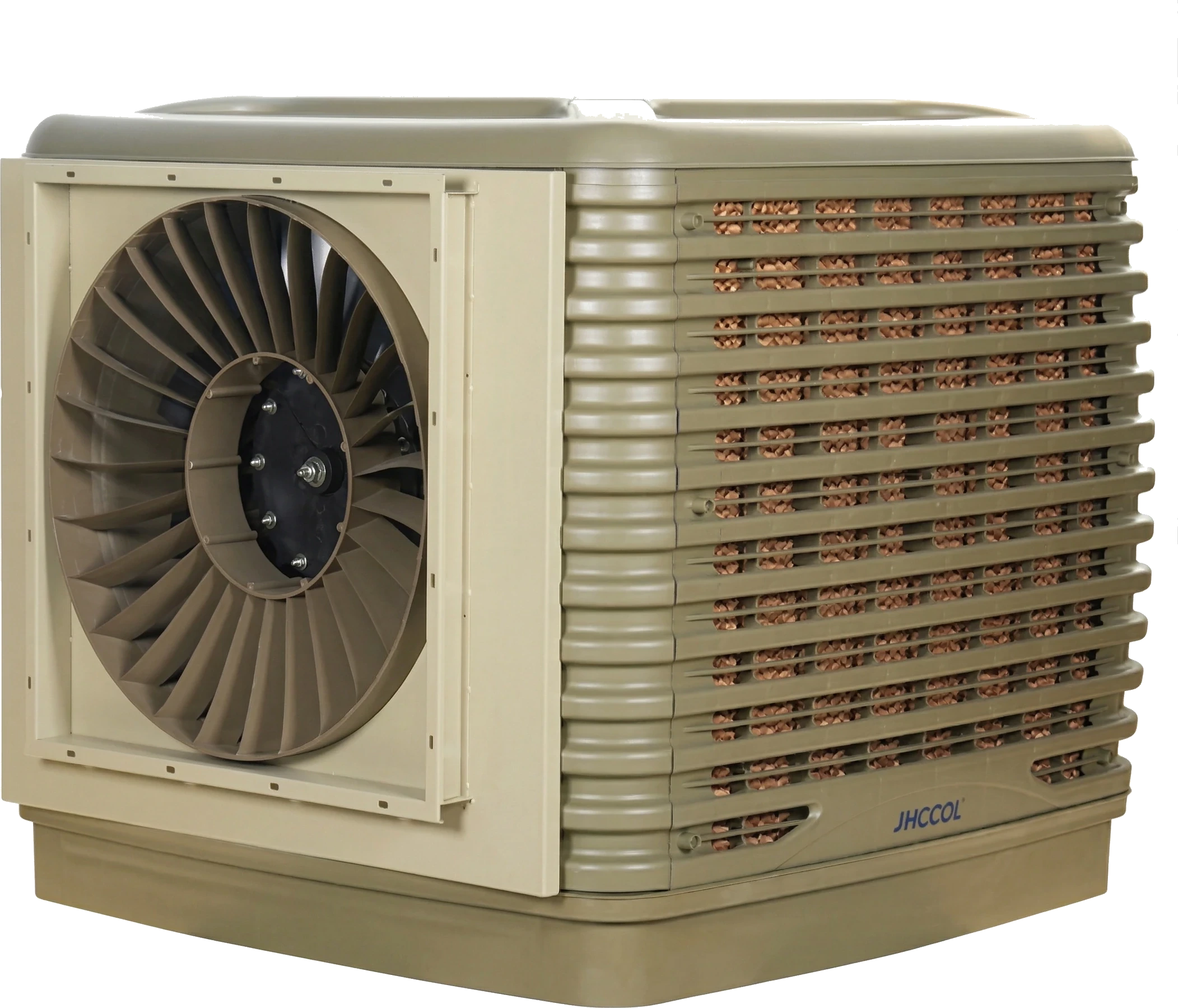

Industrial Air Cooler
30 Series
30,000 m³/h airflow commercial evaporative air cooler for industrial applications
30,000 m³/h heavy-duty commercial evaporative air cooler for industrial facilities, factories, and large warehouses. Multiple configurations including rooftop and ducted options.
Select Configuration
Fan Type
Power Phase
Speed / Control Type
Please select power phase first
Air Outlet Direction
Control Method
Housing Style
Selected Configuration:Please select all options
Heavy-Duty Cooling for Large Facilities
Large-space airflow, flexible mounting, and centralised control for warehouses and demanding manufacturing operations.
30,000 m³/h airflow
200–350 m² coverage
2.2–4 kW range
380 V 3-phase
Product Highlights
Roof, wall, or duct
Select the installation path that fits the building envelope.
Three-phase duty
Motor options designed for sustained industrial operation.
Multi-machine linking
Coordinate multiple units as one facility-wide cooling system.
Centralised control
Manage schedules, targets, and status from a single point.
CORE ADVANTAGES
Large-scale cooling, configured for your site.
The 30 series pairs high-volume evaporative cooling with the outlet, fan and motor arrangement your building needs. See how the air is routed, moved and cooled.

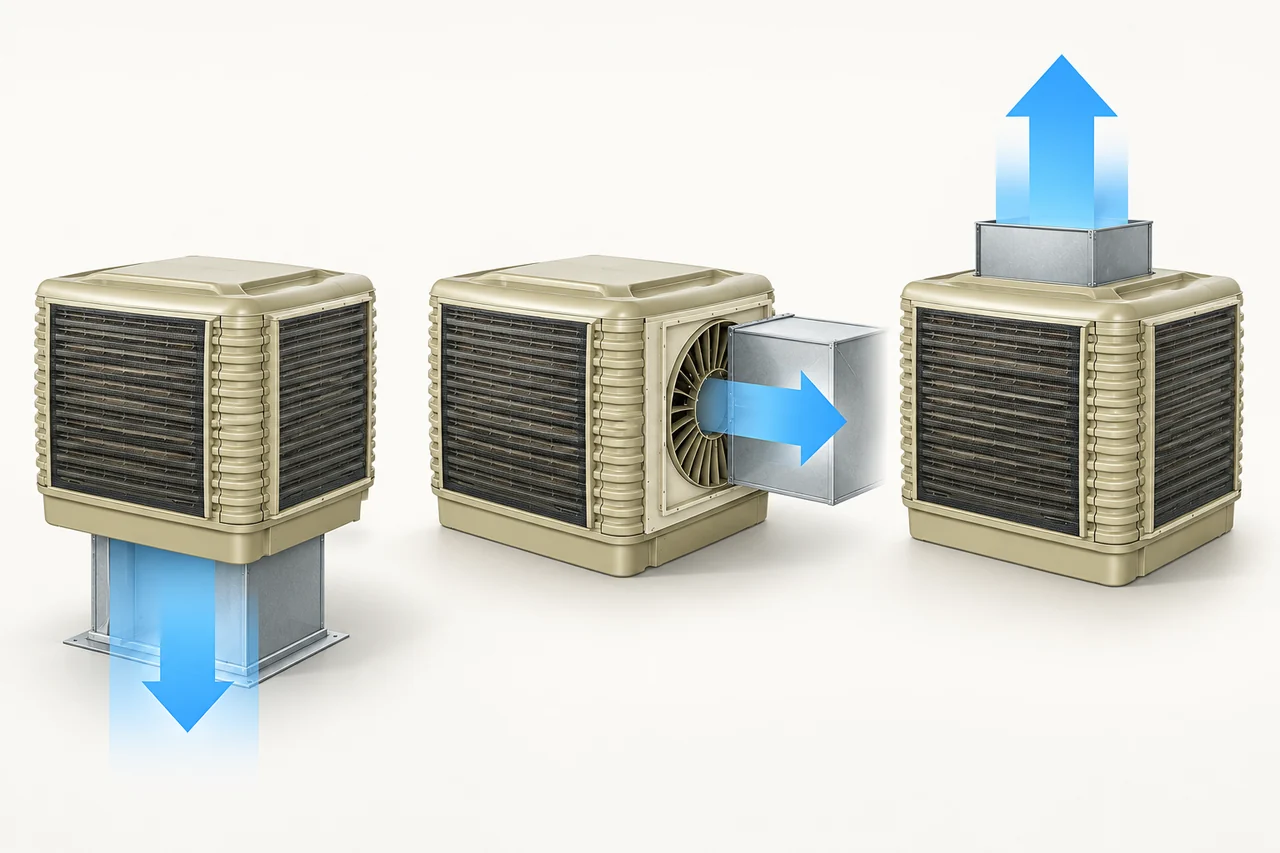

Installation flexibility
Three ways to deliver cooled air.
Choose the outlet that fits the route into a large workshop or warehouse. Down, side and top discharge are available across the 30 series.
- Down discharge
- Send air through a roof opening into the supply duct below.

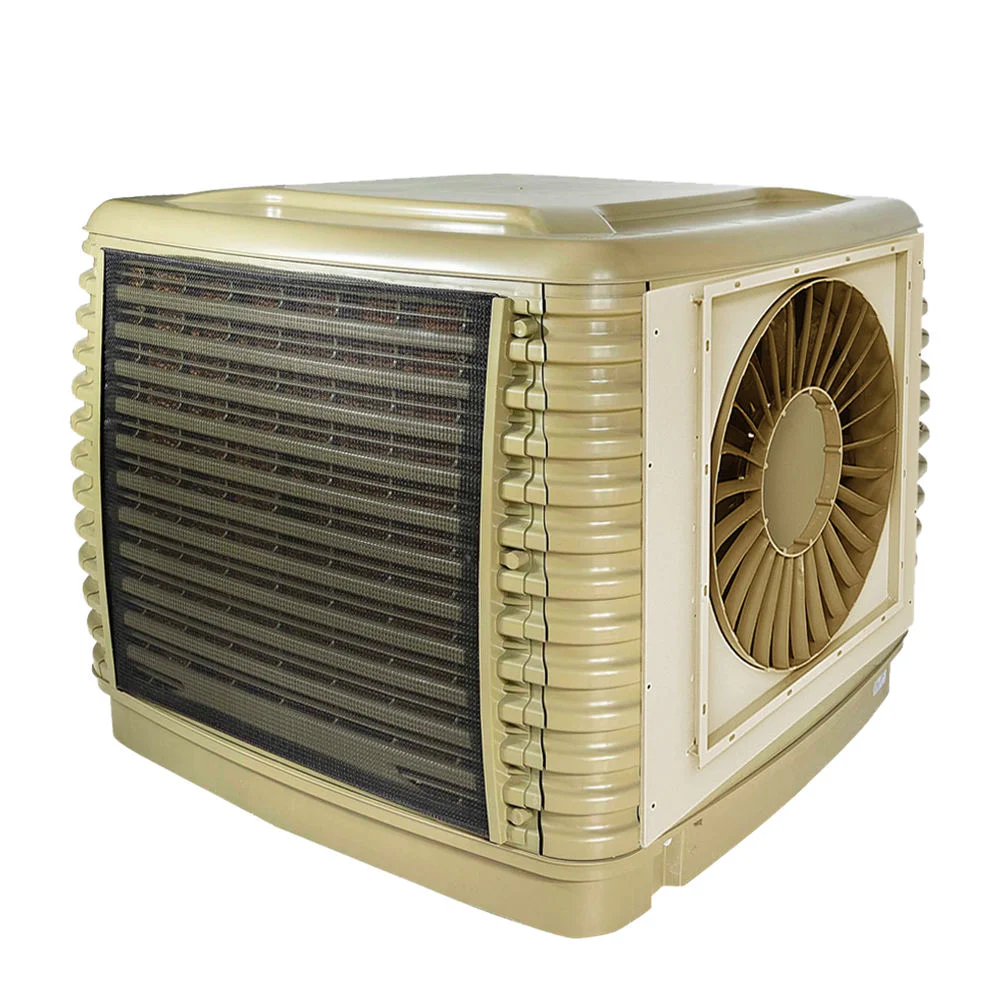

- Side discharge

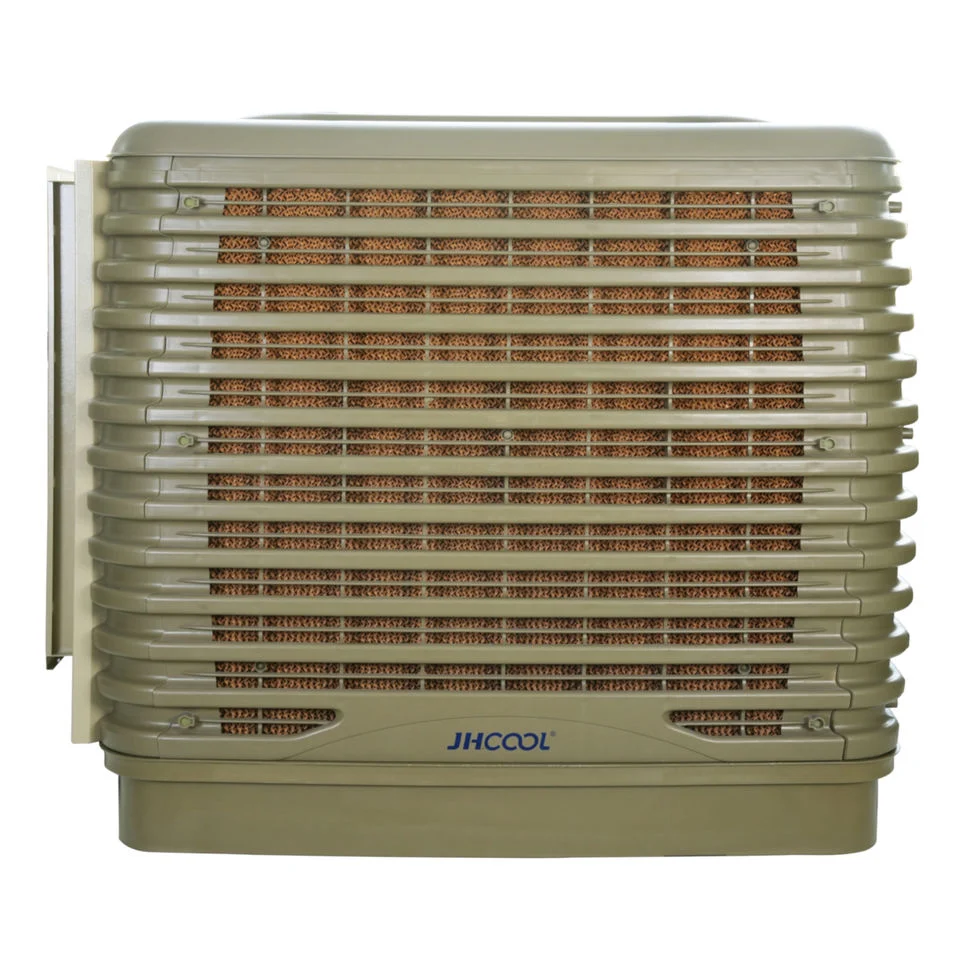

- Connect horizontally through a wall or to a side duct.

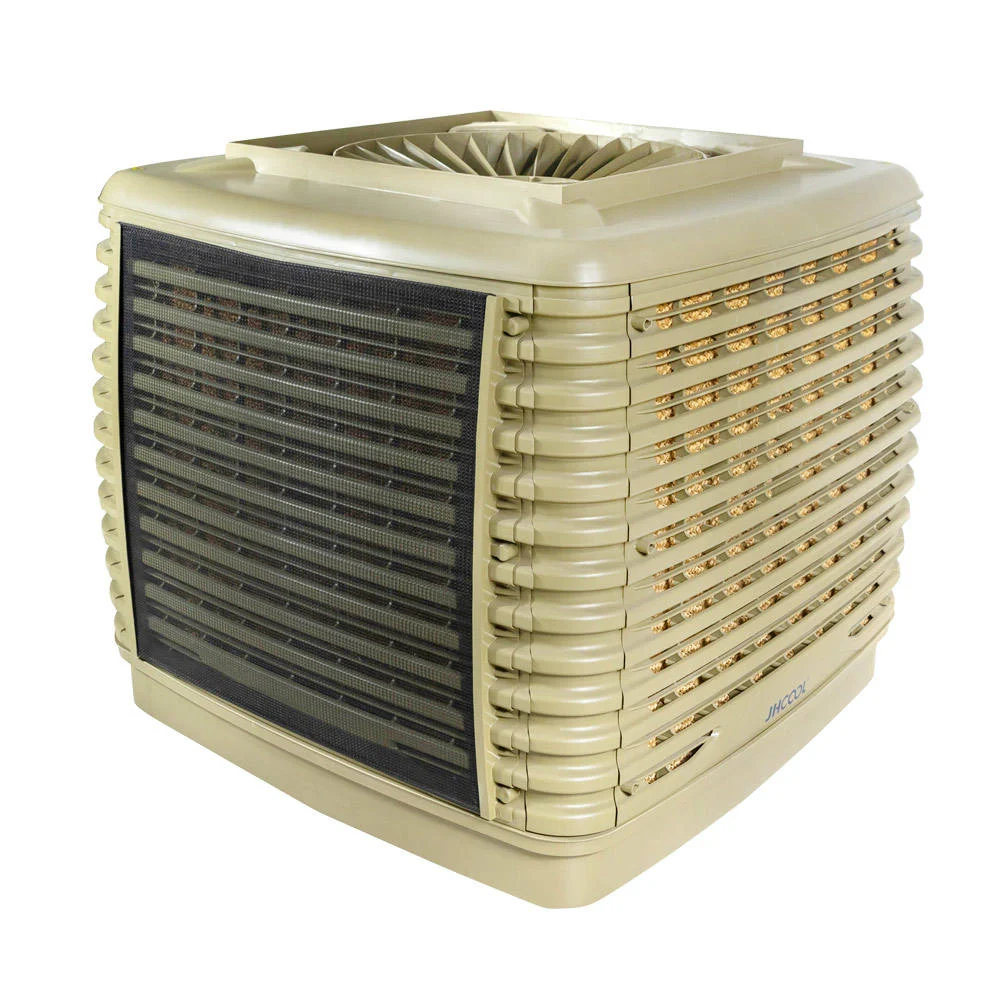

- Top discharge
- Lead air into ductwork above the unit.

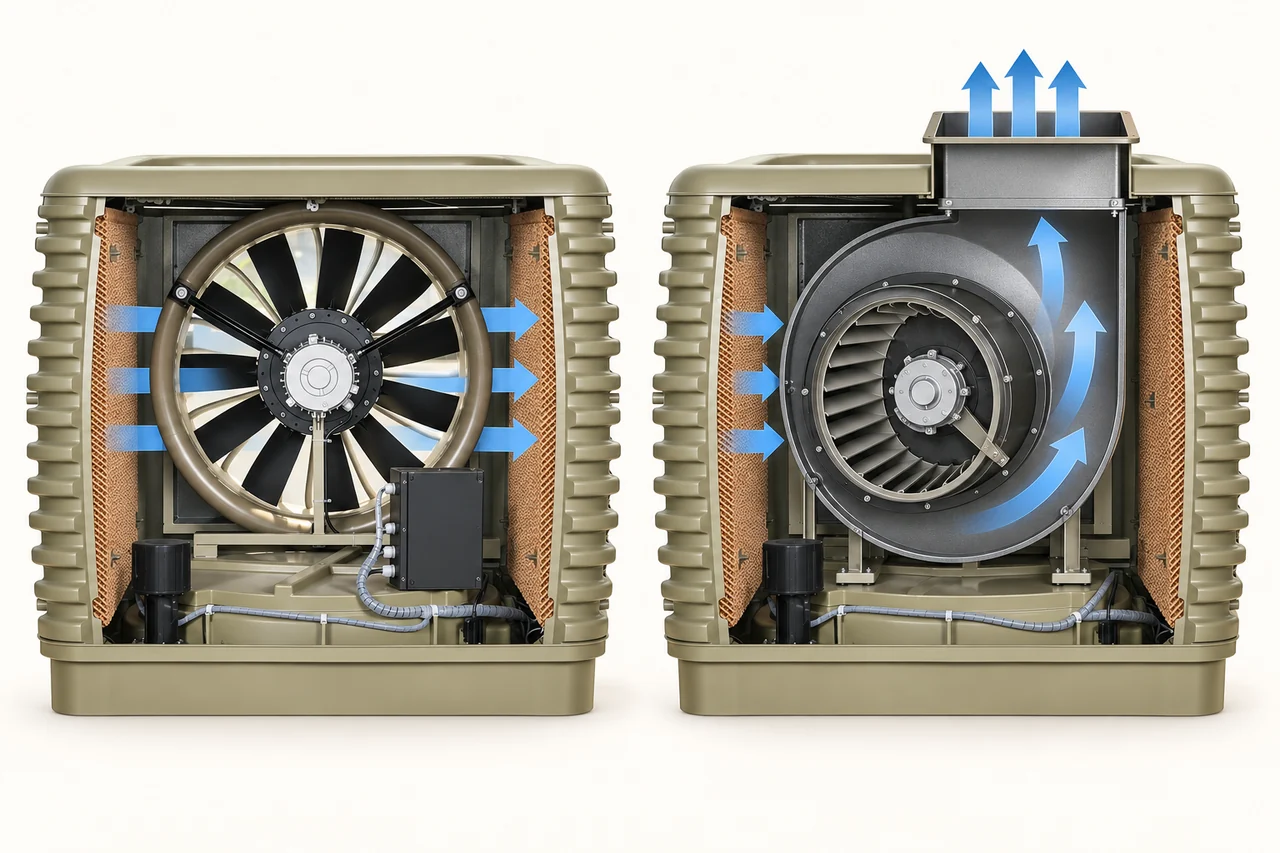

Fan selection
Axial flow or centrifugal pressure.
The air path determines the fan. Select an axial configuration for direct, high-volume delivery or a centrifugal configuration where the duct system calls for more pressure.

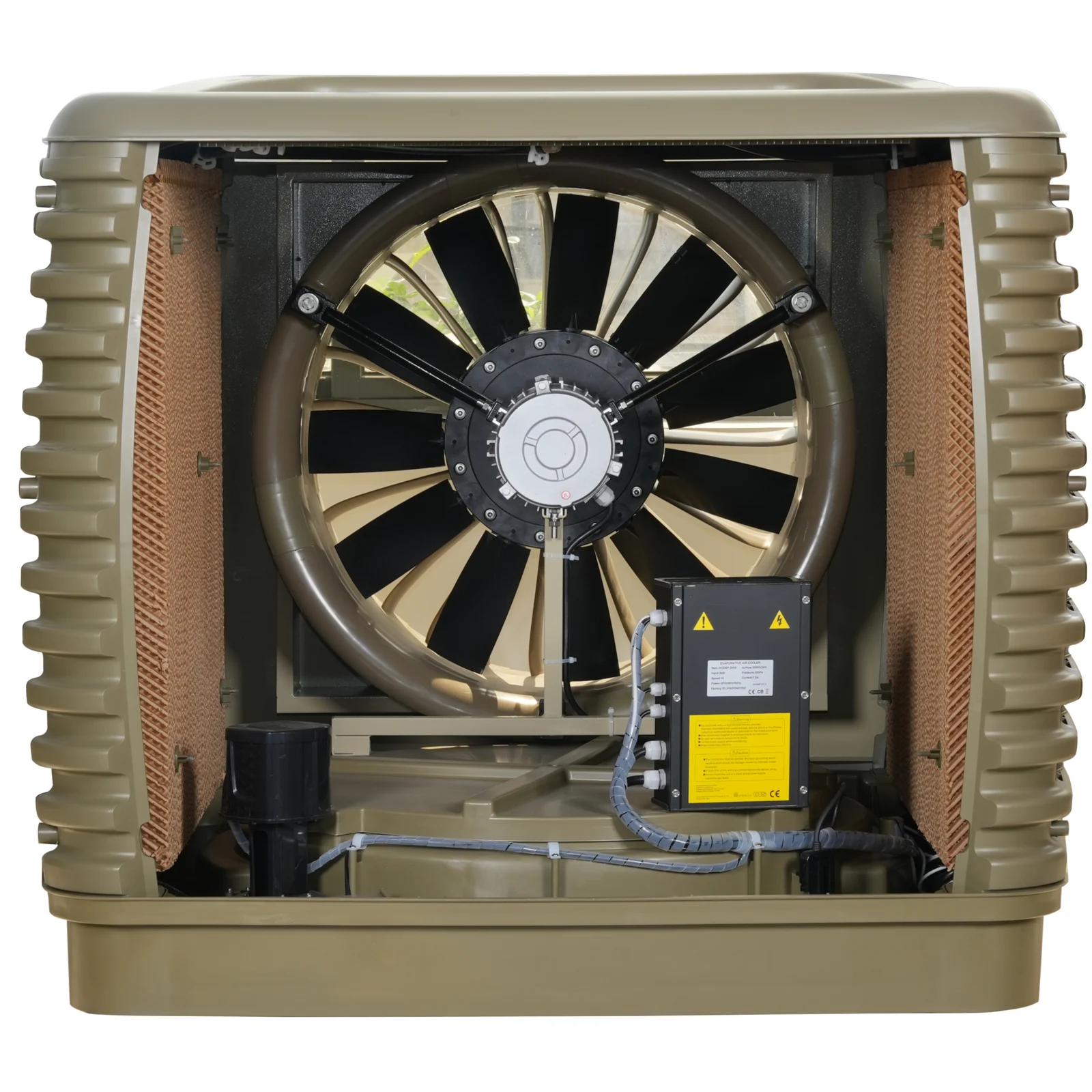

- Axial fan
- A direct air path in the molded-cabinet variants, with variable speed on equipped models.

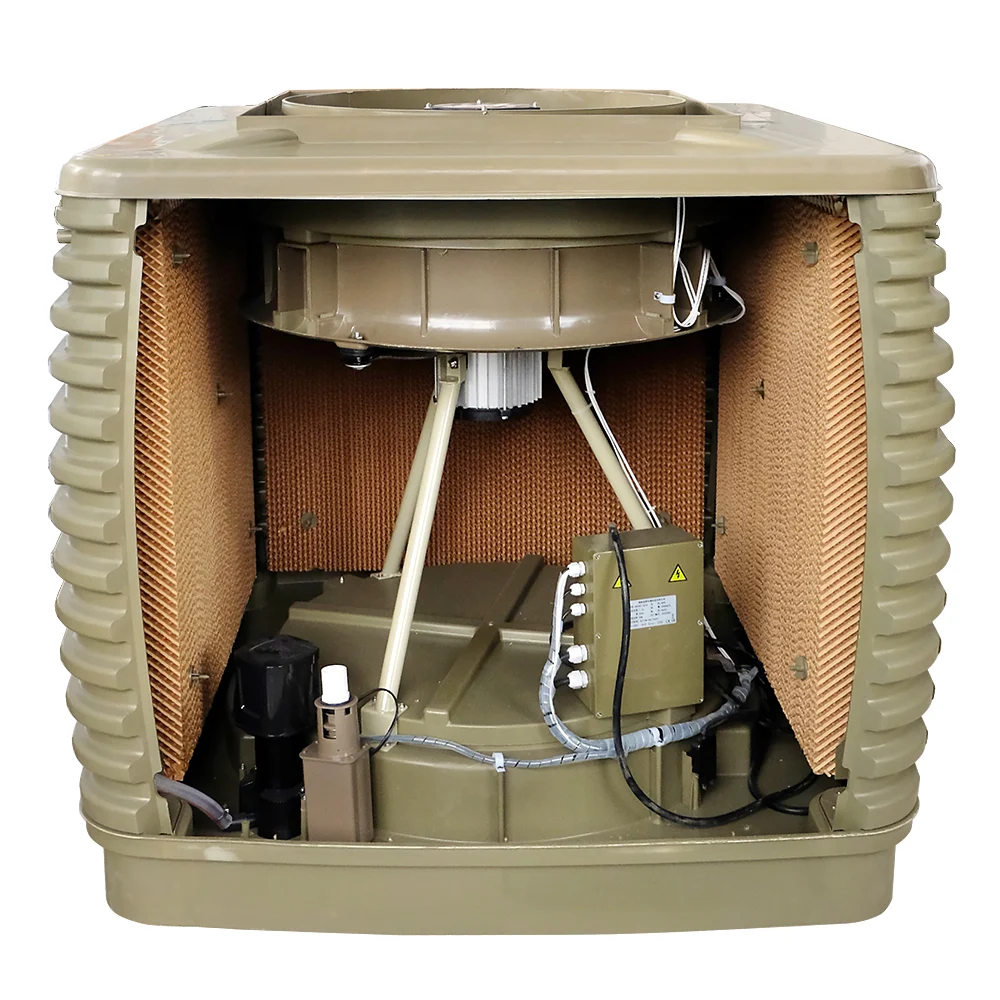

- Centrifugal fan
- A scroll blower in the metal-cabinet top-discharge variant for ducted supply.

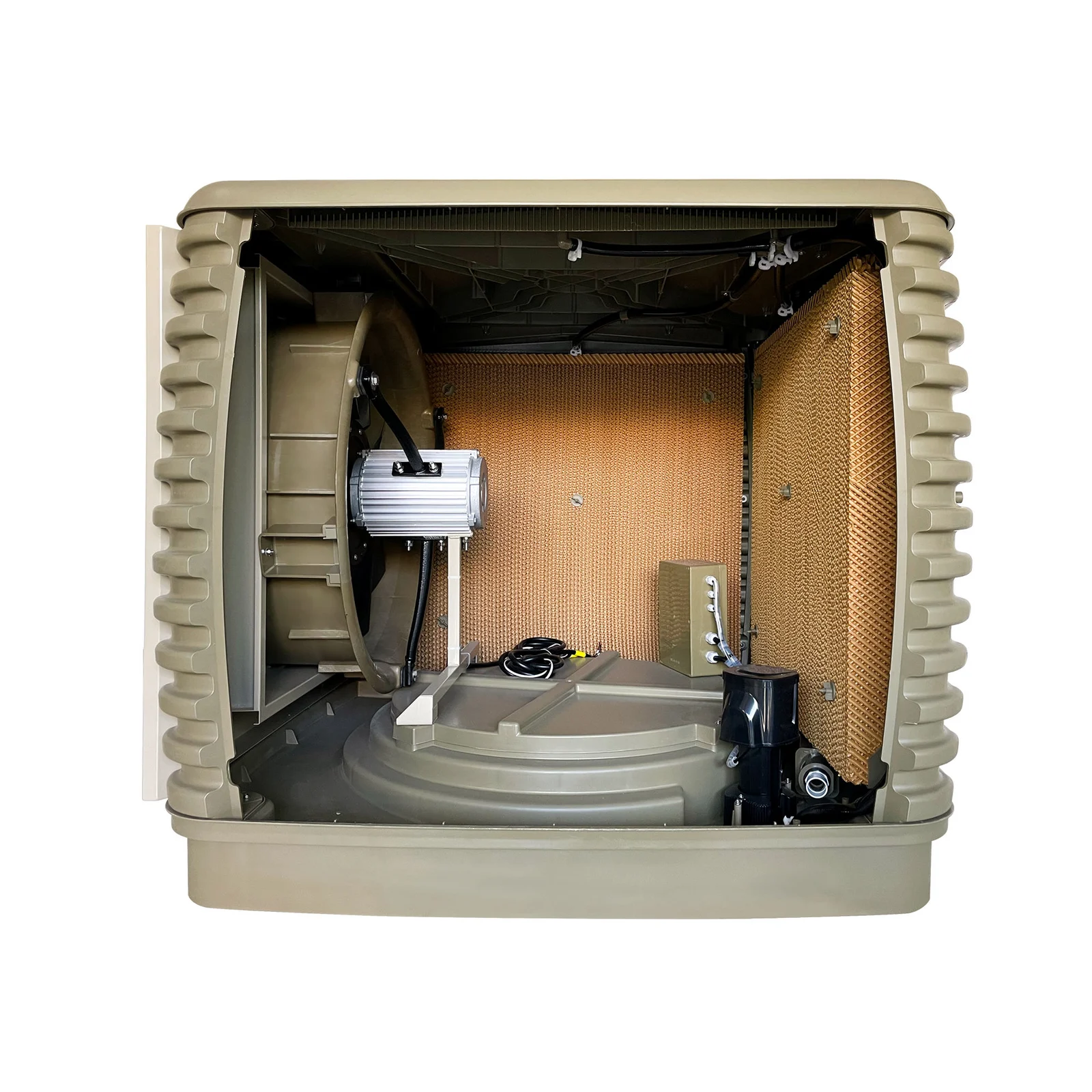

Evaporative cooling
Fresh air, cooled by evaporation.

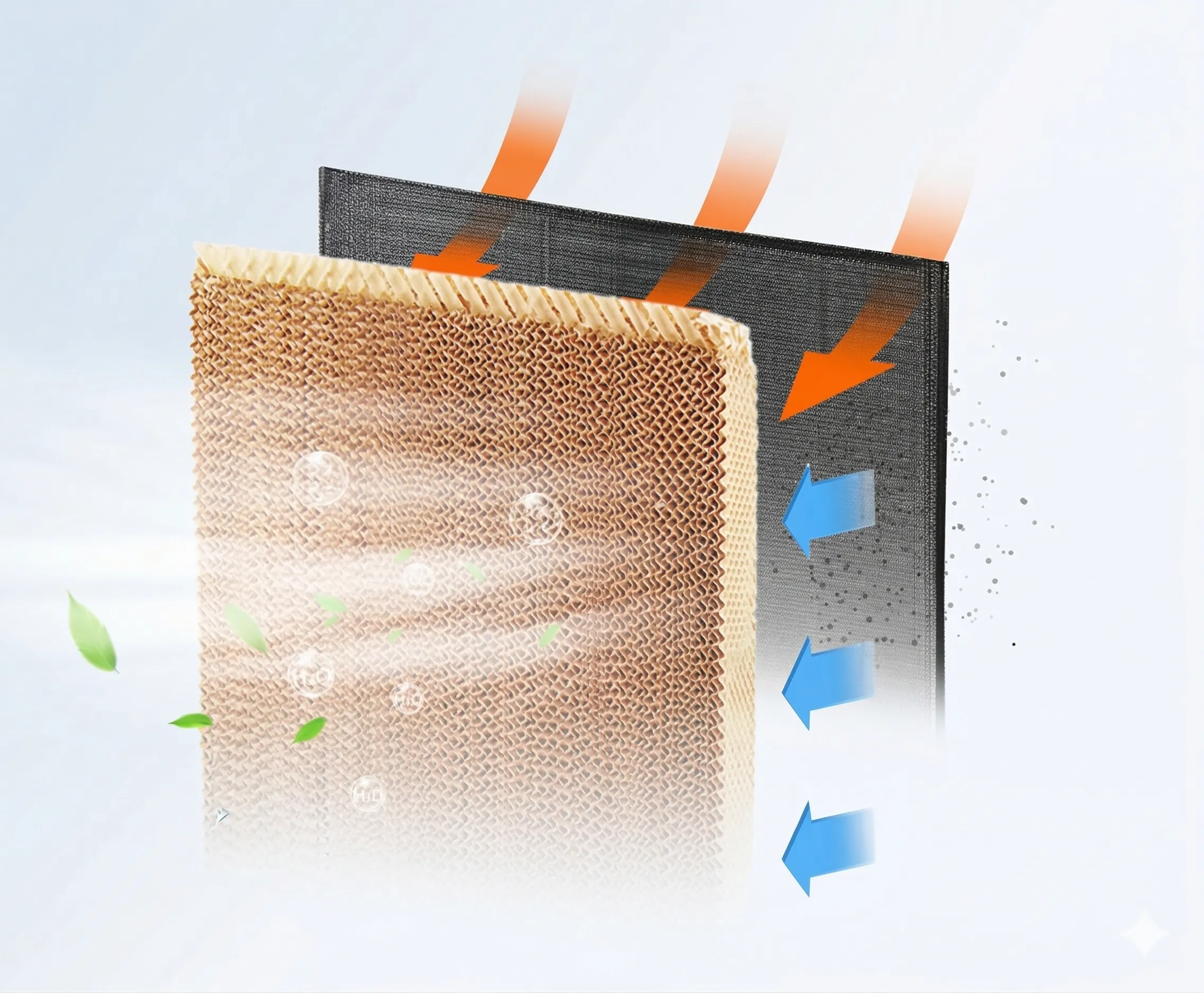

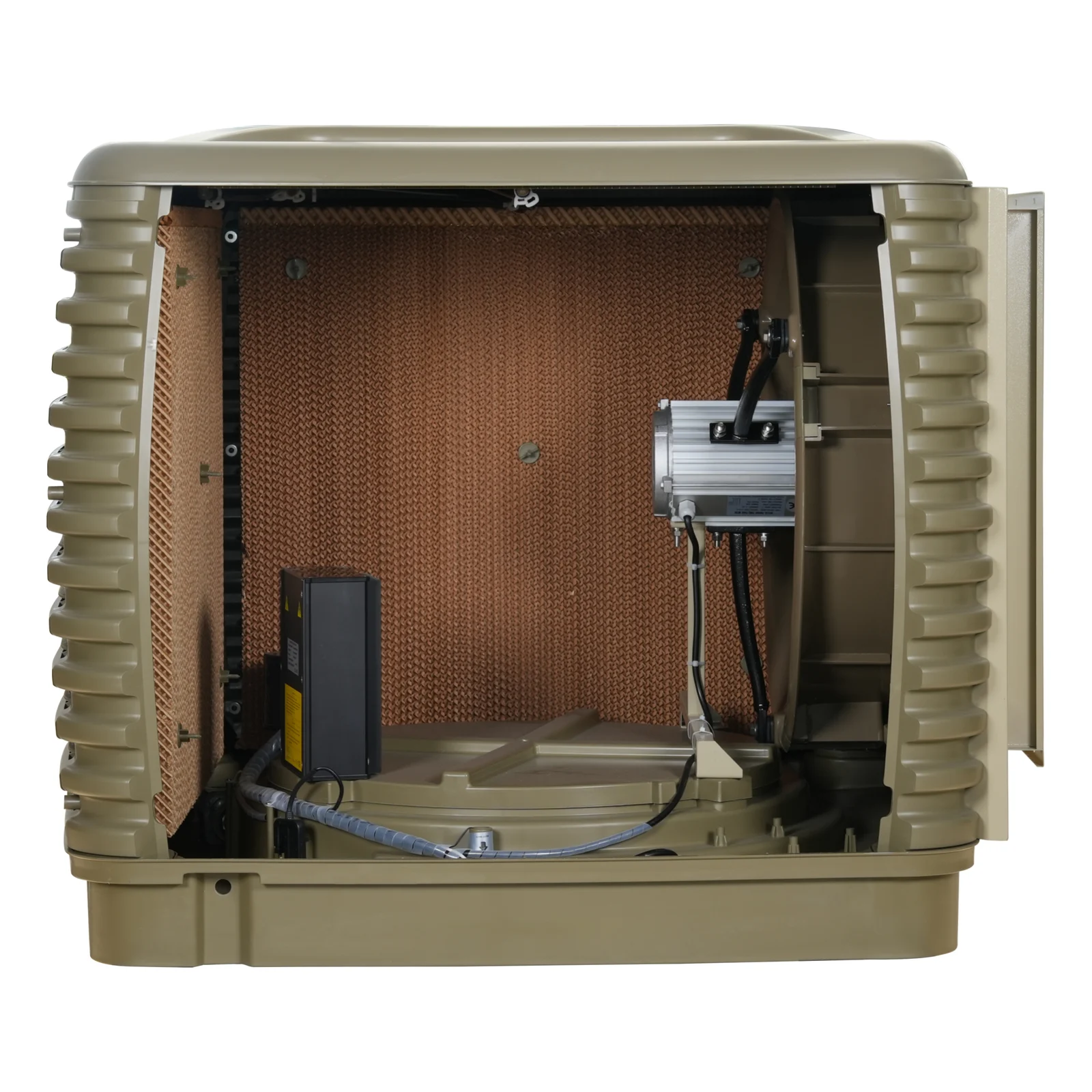

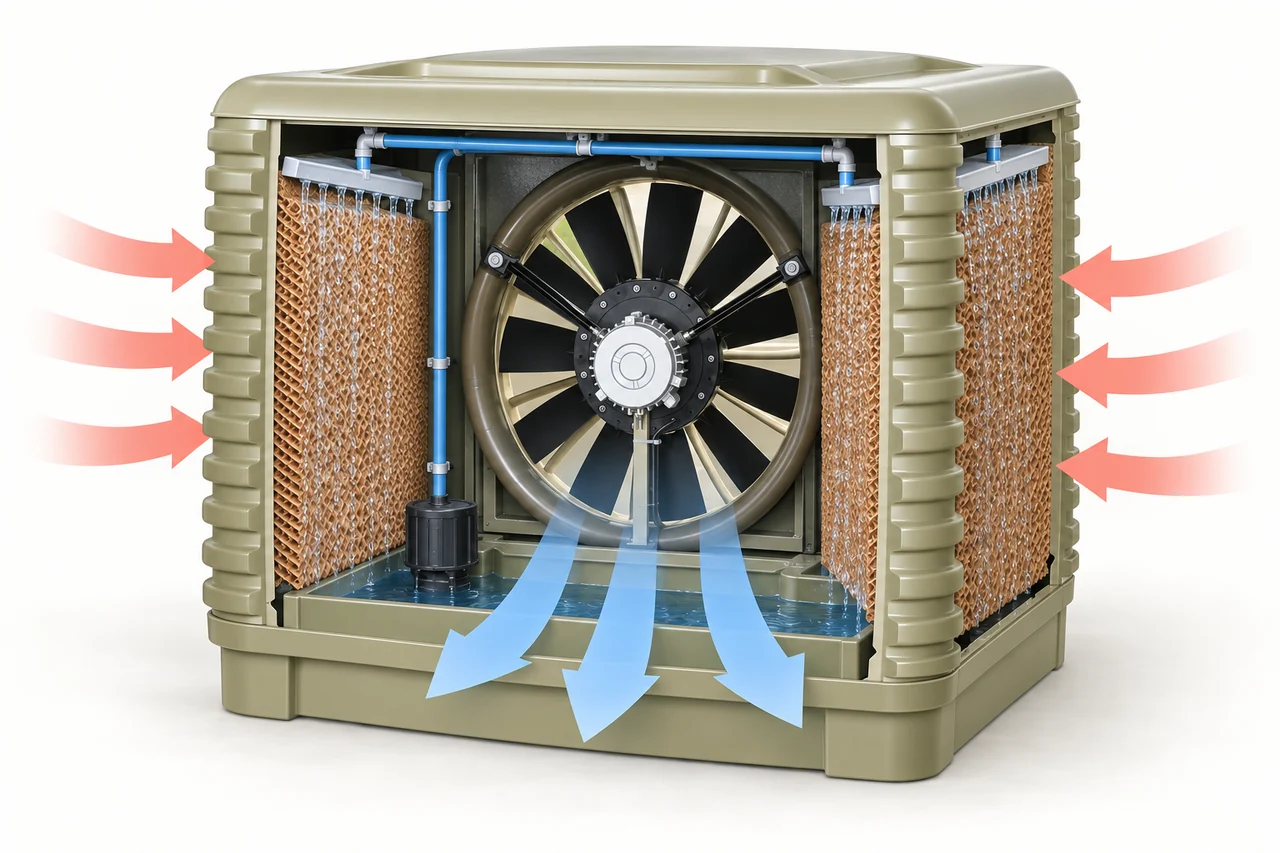

Warm outside air crosses water-wetted honeycomb pads. Evaporation absorbs heat from the air, and the fan delivers the cooled fresh air into the building.
- Wet the pads

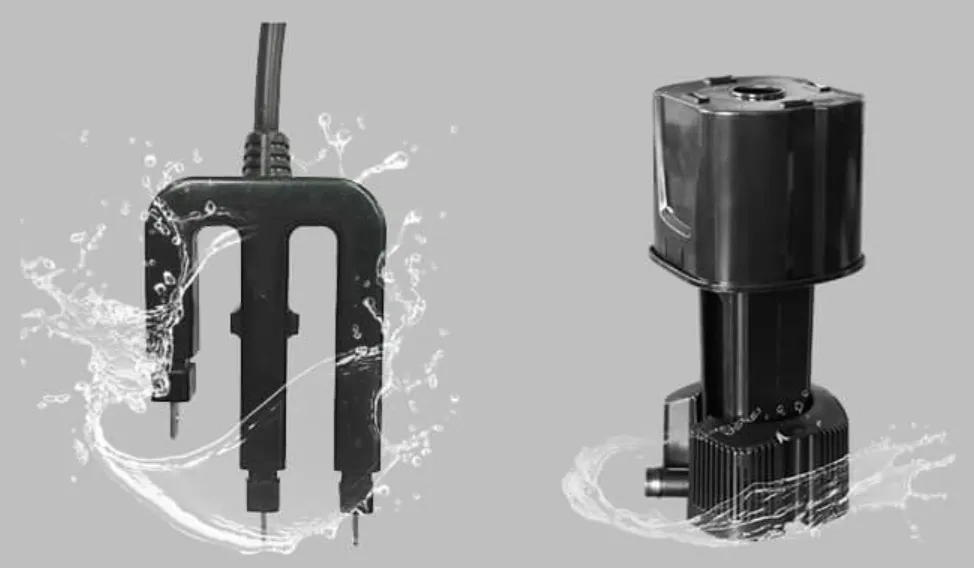

- A pump circulates water from the lower reservoir to the upper distributor.
- Cool the intake air
- Air gives up heat as a portion of the water evaporates from the pads.
- Deliver fresh airflow
- The fan drives the cooled air through the selected outlet.

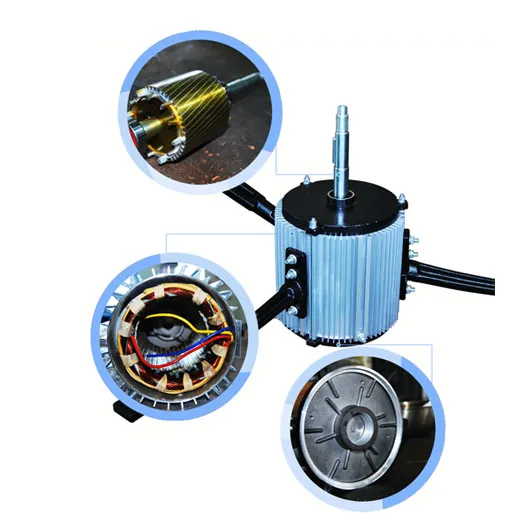

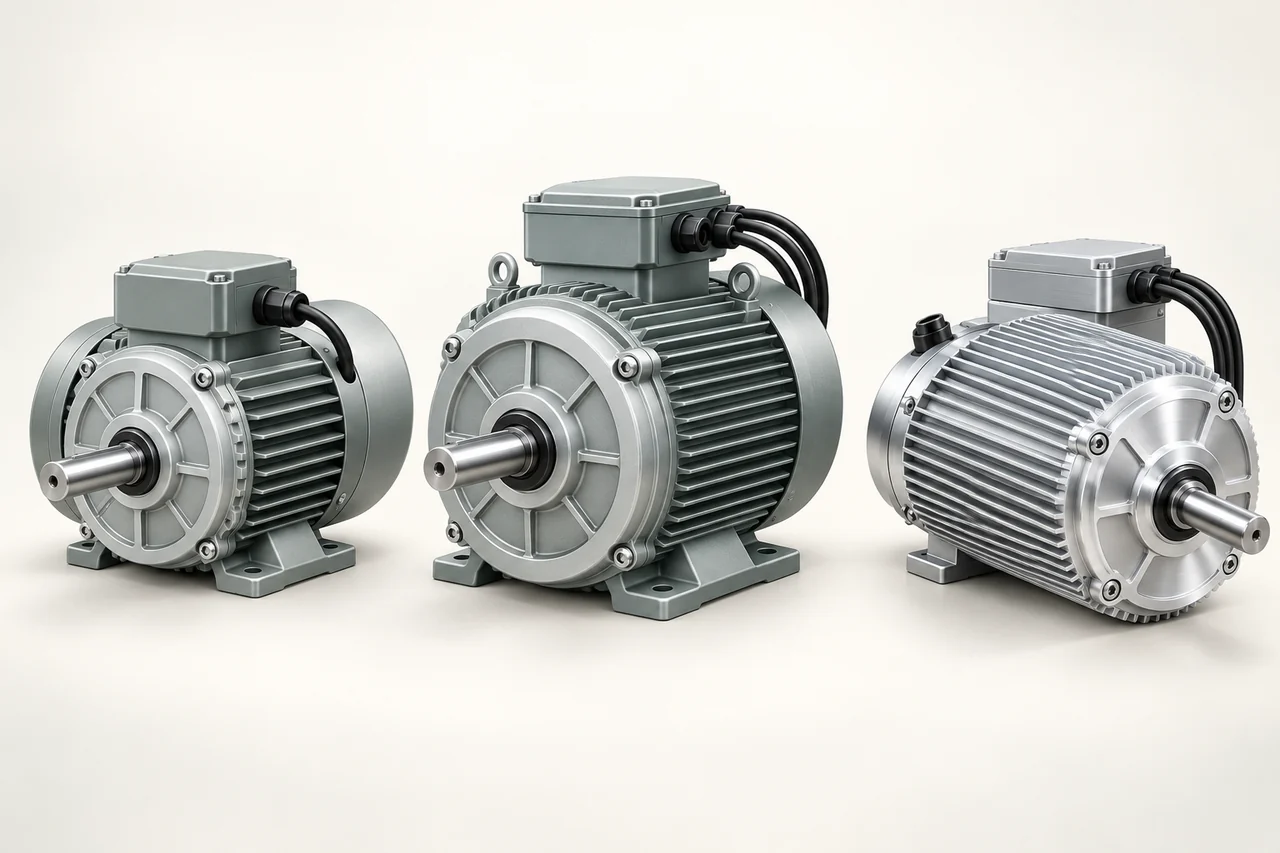

Motor options
Choose the power supply and drive.
Single-phase and three-phase electrical specifications are available across the series. A brushless DC motor is also an option for compatible configurations. Select the supply and drive to match the site and duty.
- Single-phase
- An option for sites supplied by single-phase power, on applicable models.
- Three-phase
- An option for industrial three-phase electrical systems.
- Brushless DC
- A motor option with electronic speed control on equipped configurations.
Configurations shown are series options. Discharge direction, fan, power supply and motor technology depend on the selected model; confirm the final combination for your project.
Installation Scenarios

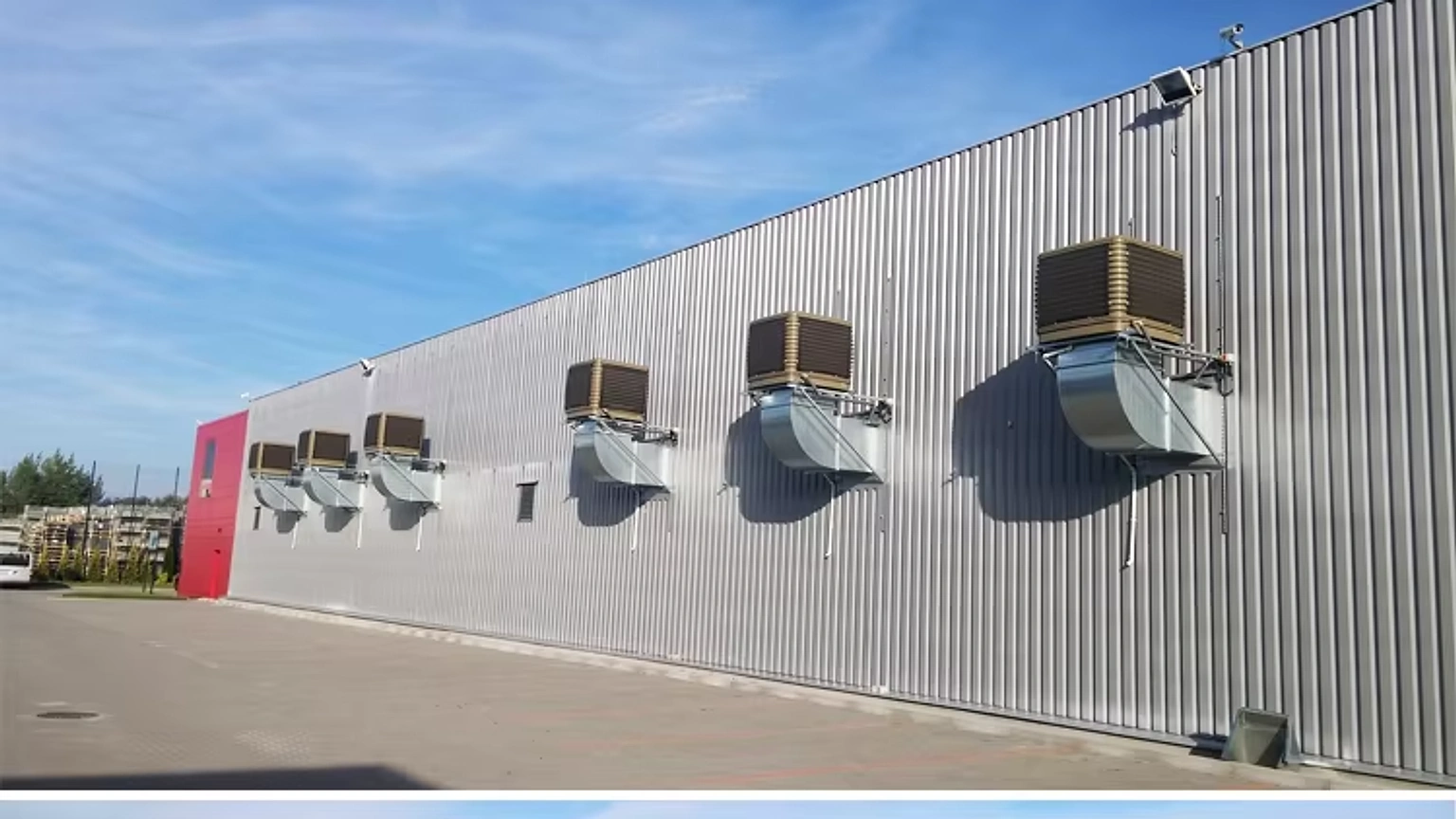

Logistics warehouse
A scalable row of units serving a long loading facility.

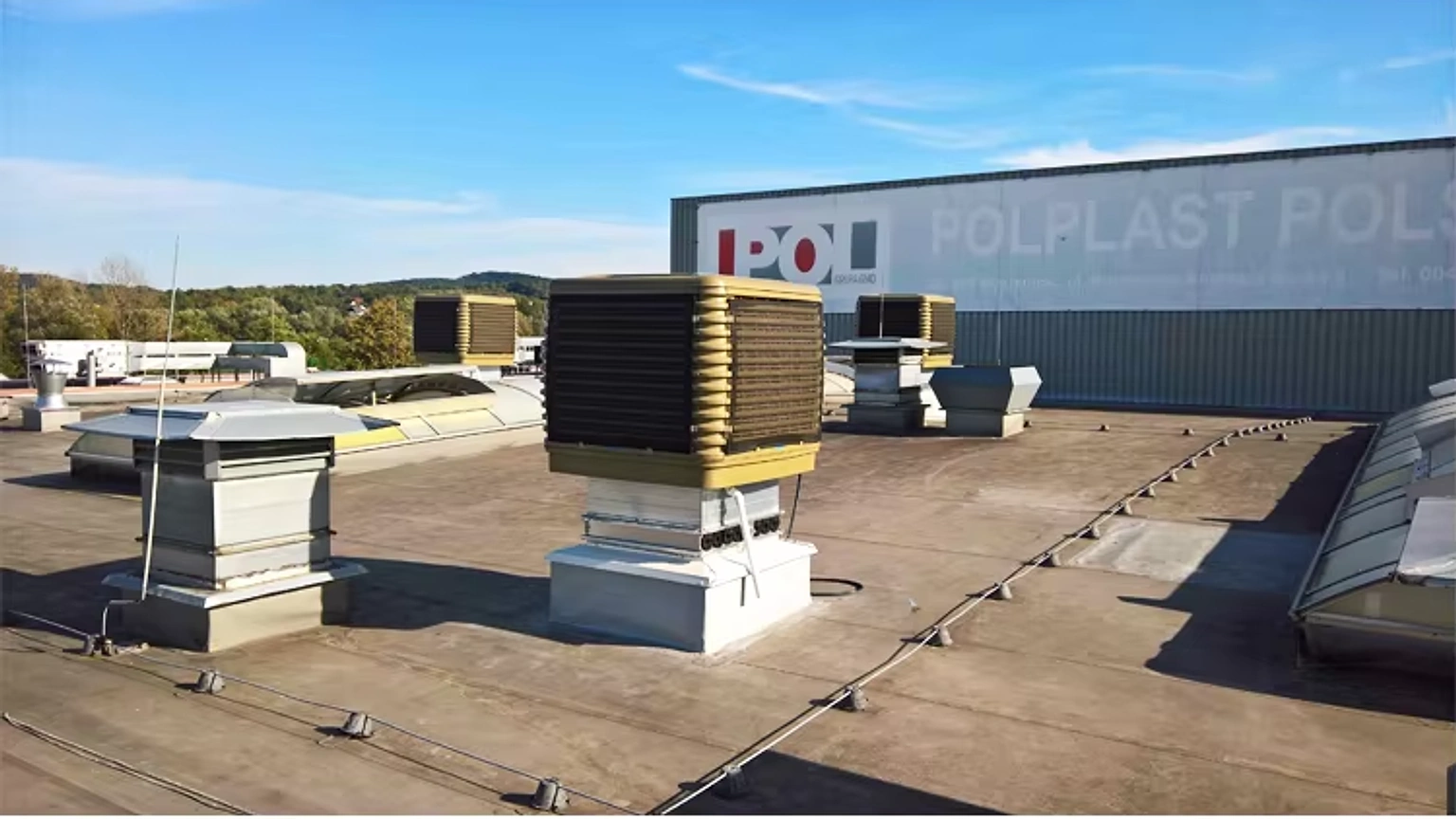

Rooftop distribution
Multiple roof units feeding fresh cooled air into production.
Technical Specifications
Airflow
30,000 m³/h
Coverage
200-350 m²
Power
2.2kW - 4kW
Dimension
Configurable
Fan Type
Axial / Centrifugal

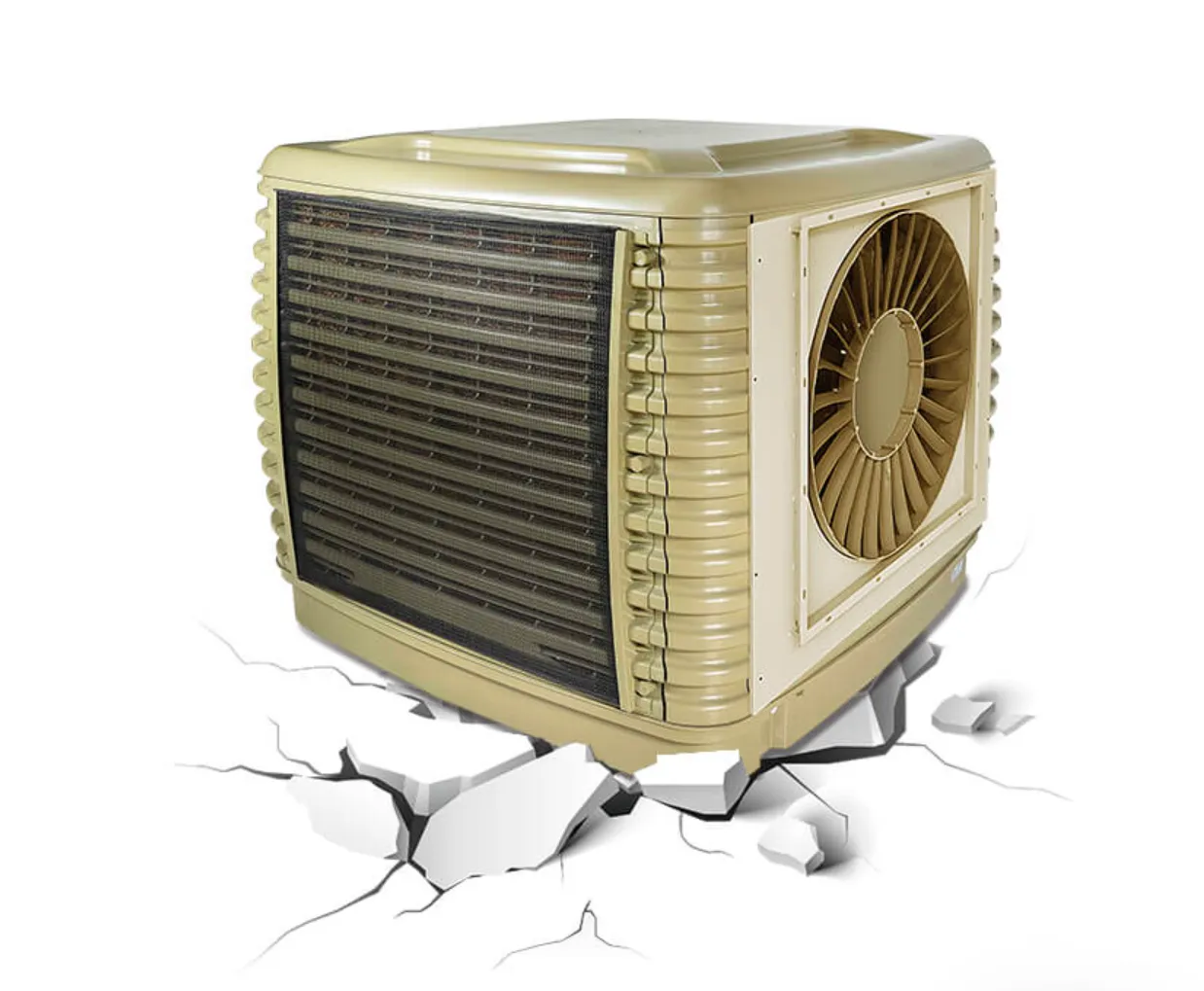

Shell Material
Plastic / Metal
Air Discharge
Top / Side / Down
Speed Control
Single / Multi / Inverter
Voltage
220V / 380V
Shipping
Sea freight · Land freight · Air freight
Delivery
15-35 days
Warranty
1 Year for machinery warranty
Payment
T/T or L/C at sight
Certifications
Verified by TÜV Rheinland®
