25,000 m³/h airflow
High-volume evaporative cooling for 250–300 m² spaces.
1/6

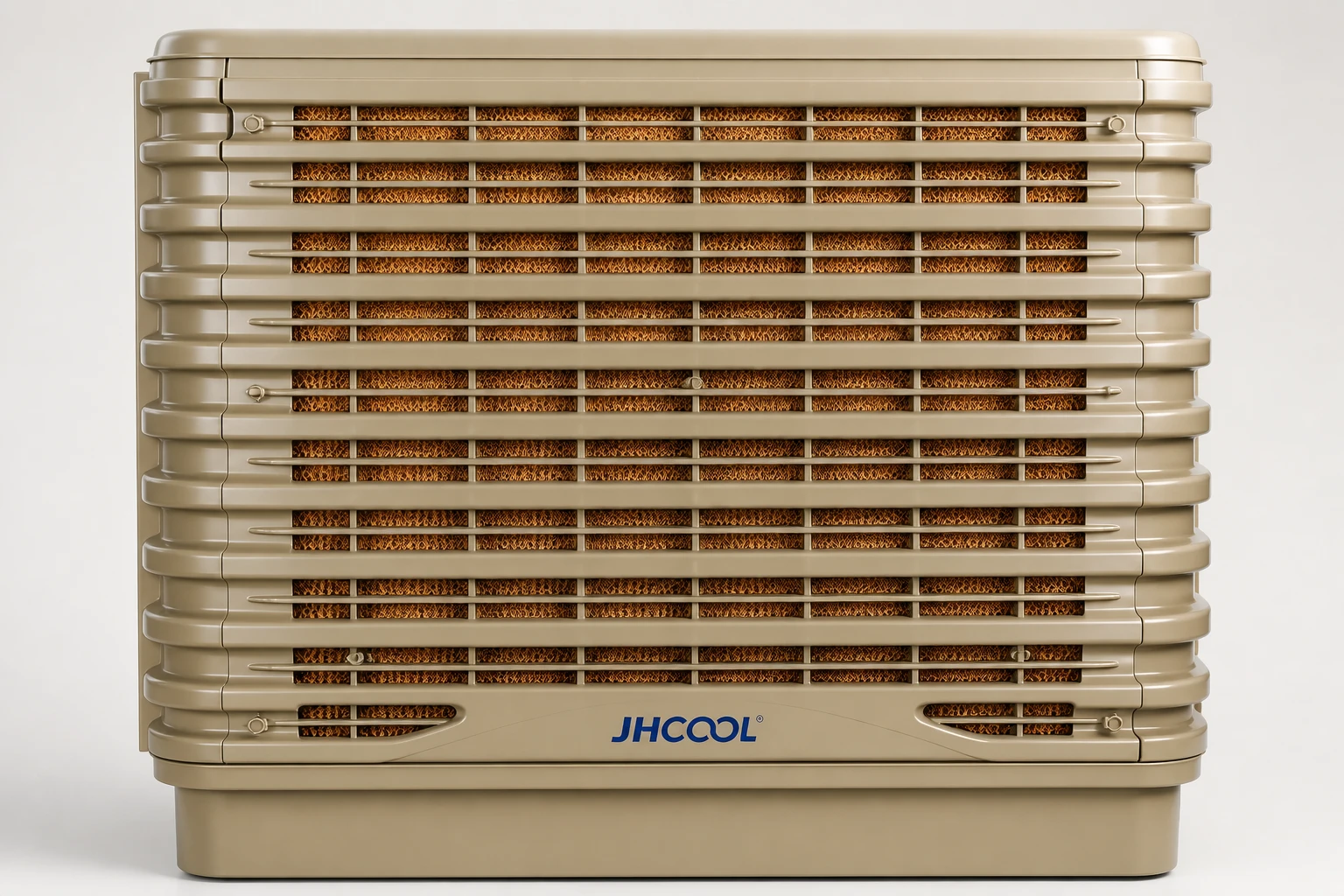

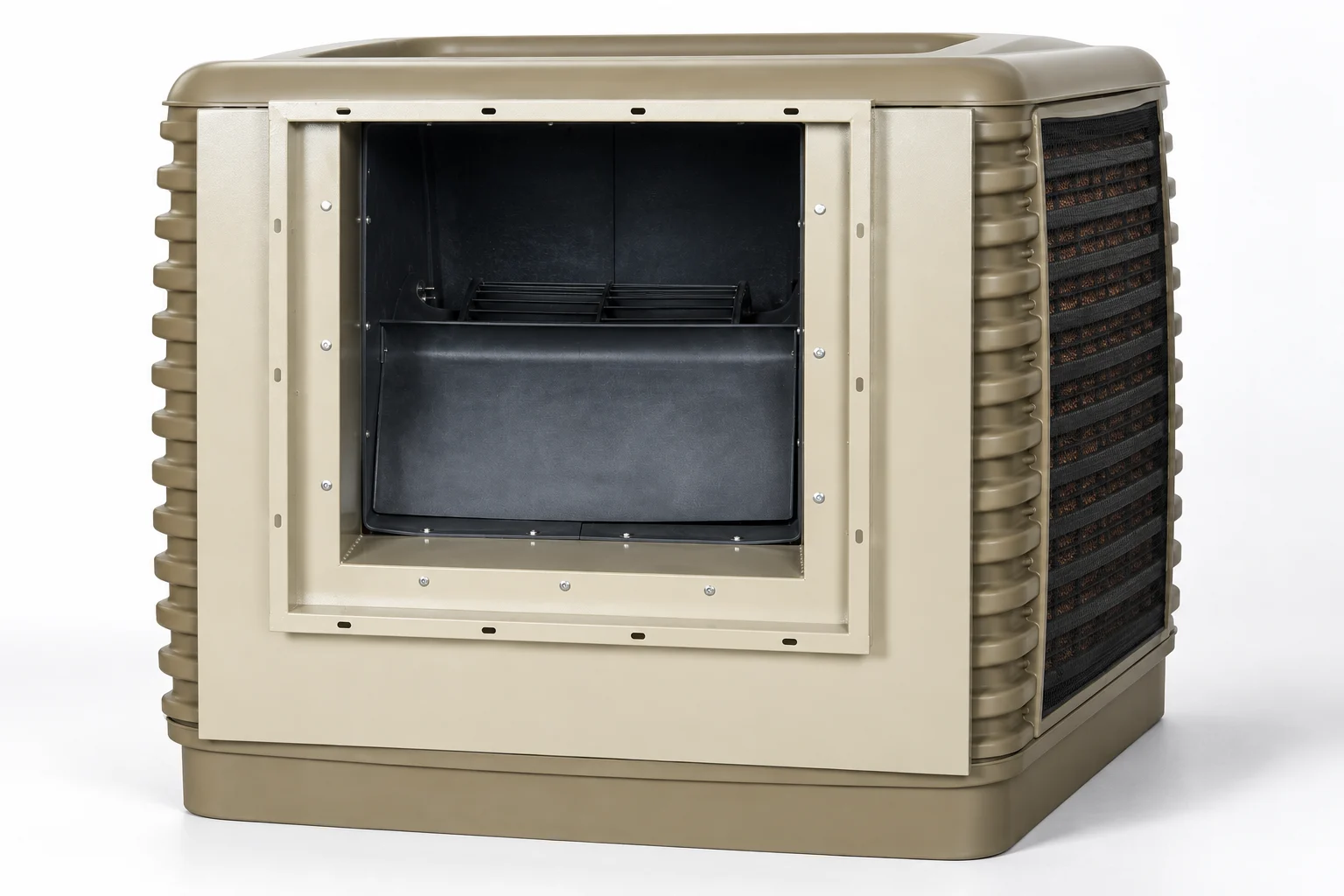

Industrial Air Cooler
25 Series
25,000 m³/h centrifugal evaporative air cooler · 250 Pa · 16-speed inverter

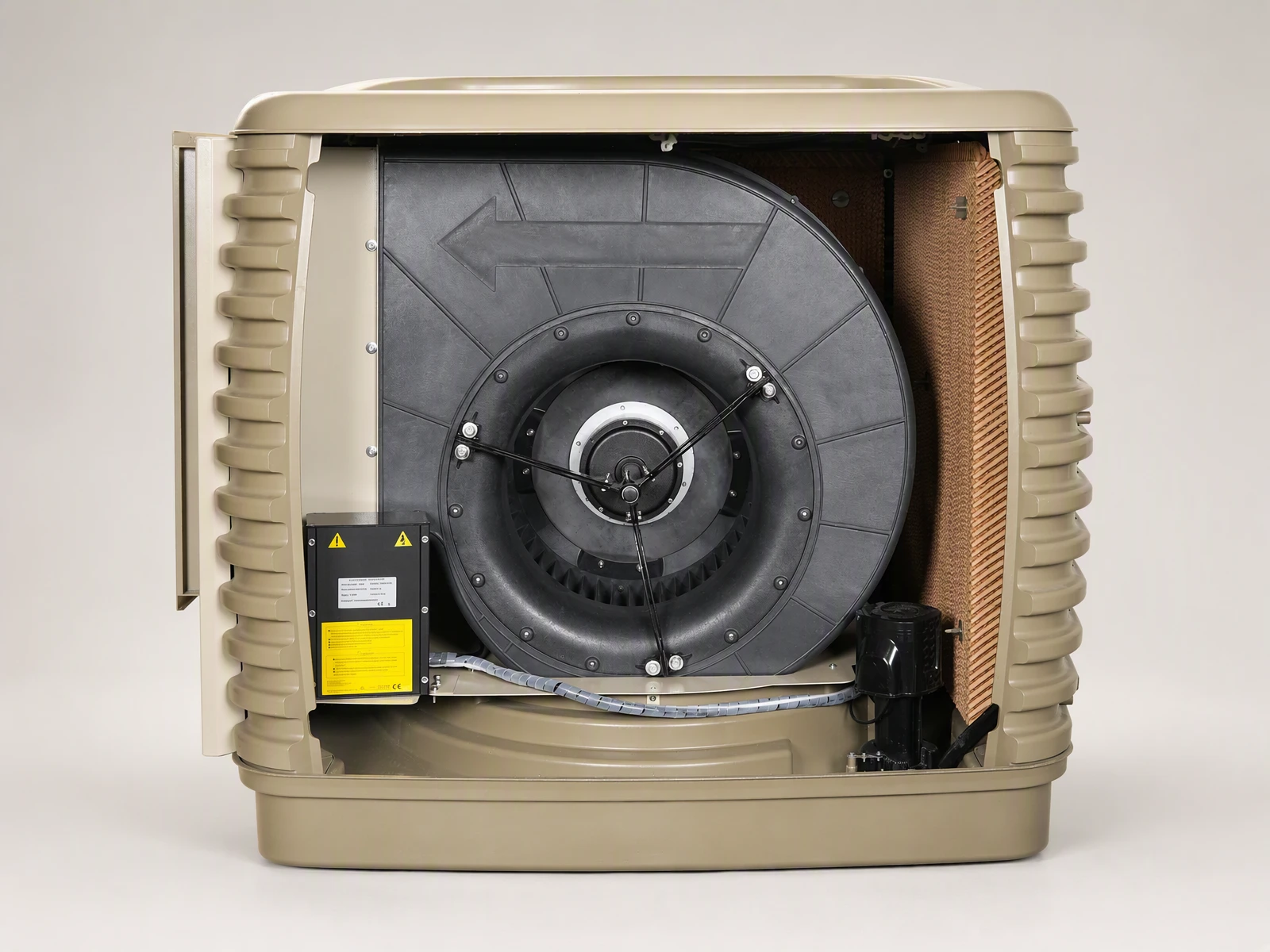

JH25LP-39S8 combines a 3 kW three-phase centrifugal fan, 250 Pa static pressure and 16-speed inverter control. Its modified PP cabinet and volute are corrosion-resistant and lightweight; automatic water inlet and drain, pre-dust filter and pump protection support daily operation.
25,000 m³/h for demanding spaces
A 250 Pa centrifugal air cooler with 16-speed inverter control, designed for large commercial and industrial spaces.
250 Pa air pressure
Centrifugal blower supports ducted air delivery.
16-speed inverter
Adjust cooling output to actual demand.
Modified PP housing
Lightweight, corrosion-resistant cabinet and volute.
3 kW · 380 V
Three-phase motor with intelligent touchscreen control.
Core Advantages

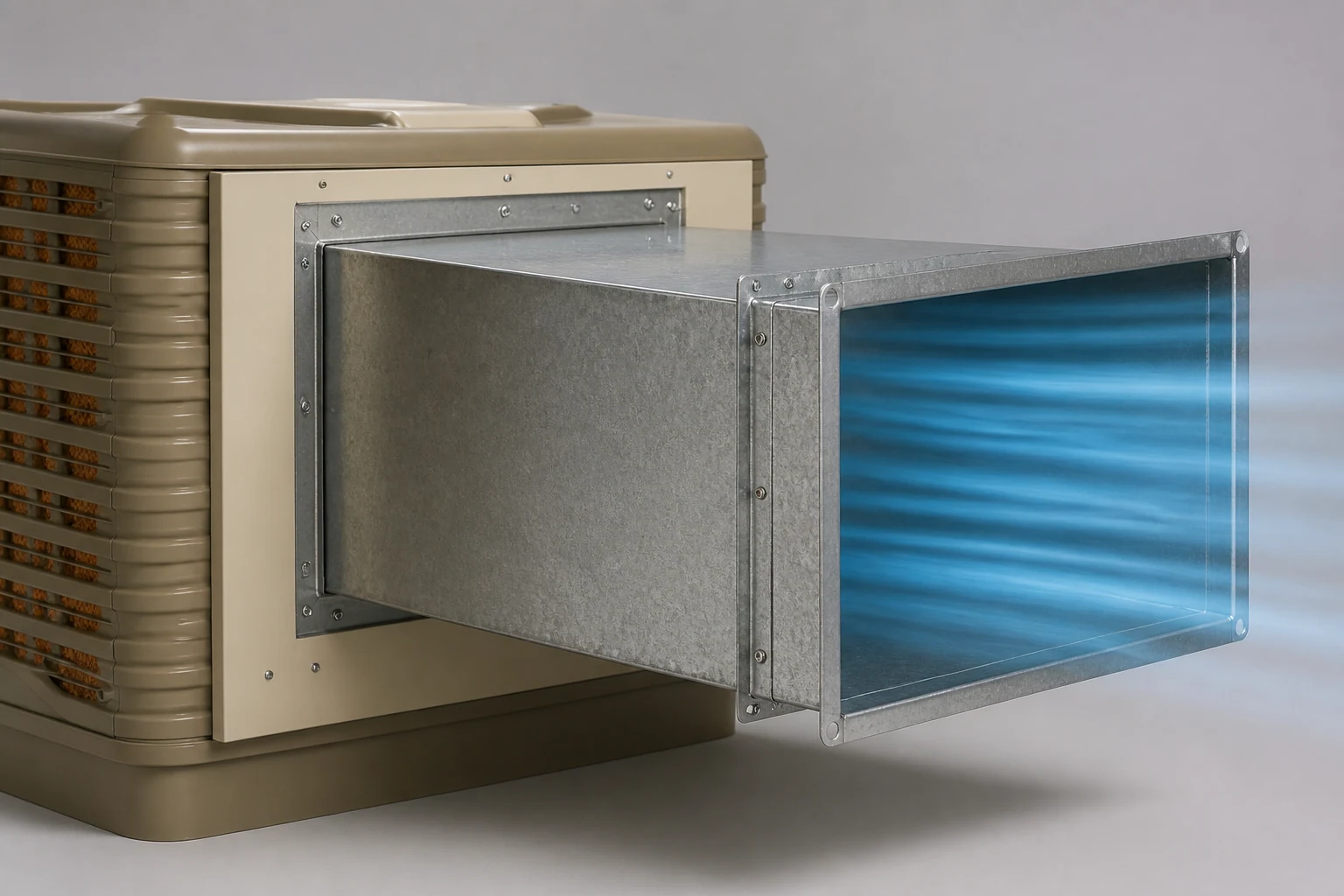

25,000 m³/h with 250 Pa pressure
The centrifugal fan delivers 25,000 m³/h at 250 Pa static pressure, so cooled air can be pushed through ductwork to the work zone instead of only cooling the area around the unit.

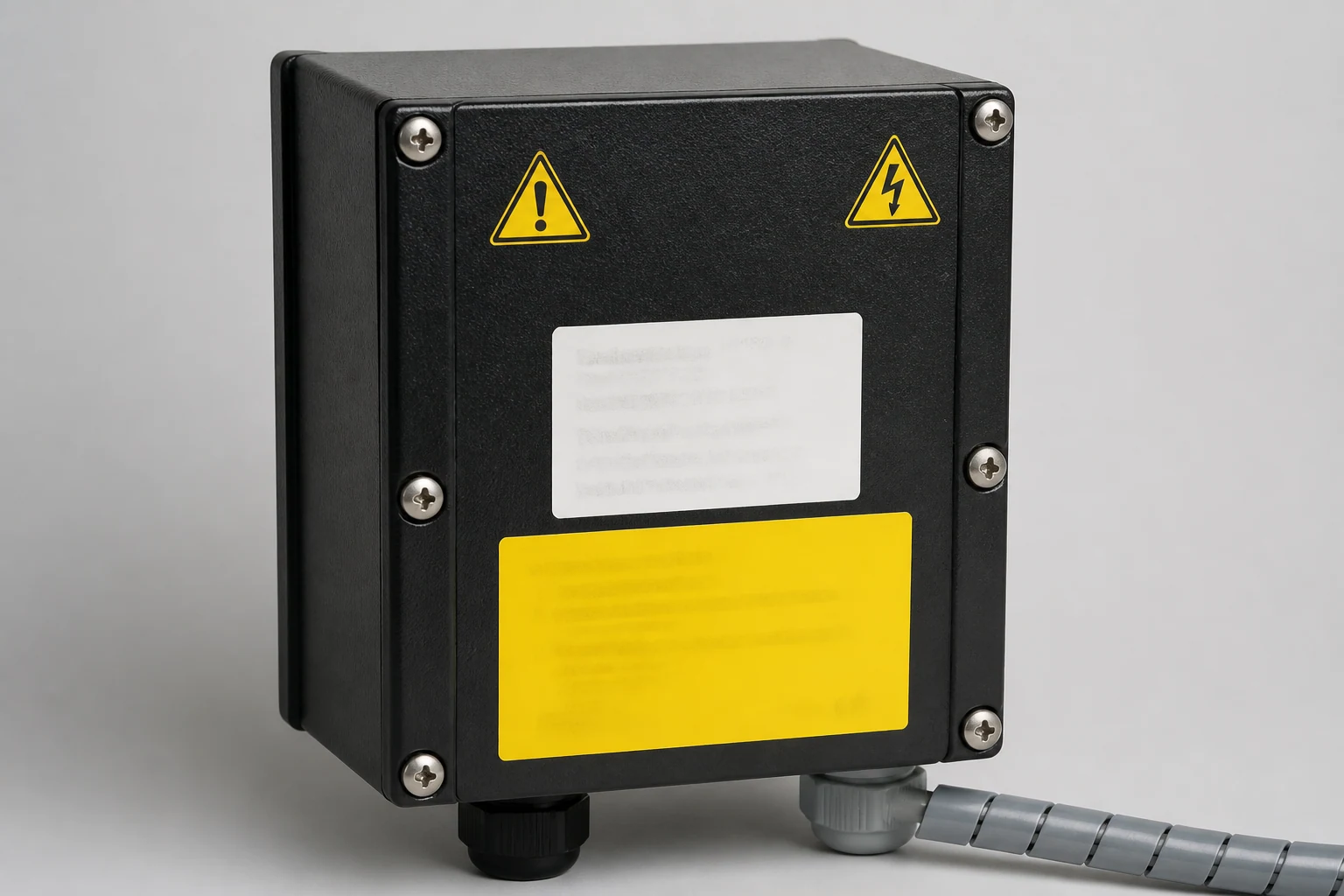

Output matched to real demand
A 3 kW three-phase motor with inverter drive and an intelligent touchscreen gives 16 speed steps, so airflow can be tuned to the shift, the season or the heat load — at a noise level of ≤ 78 dB(A).

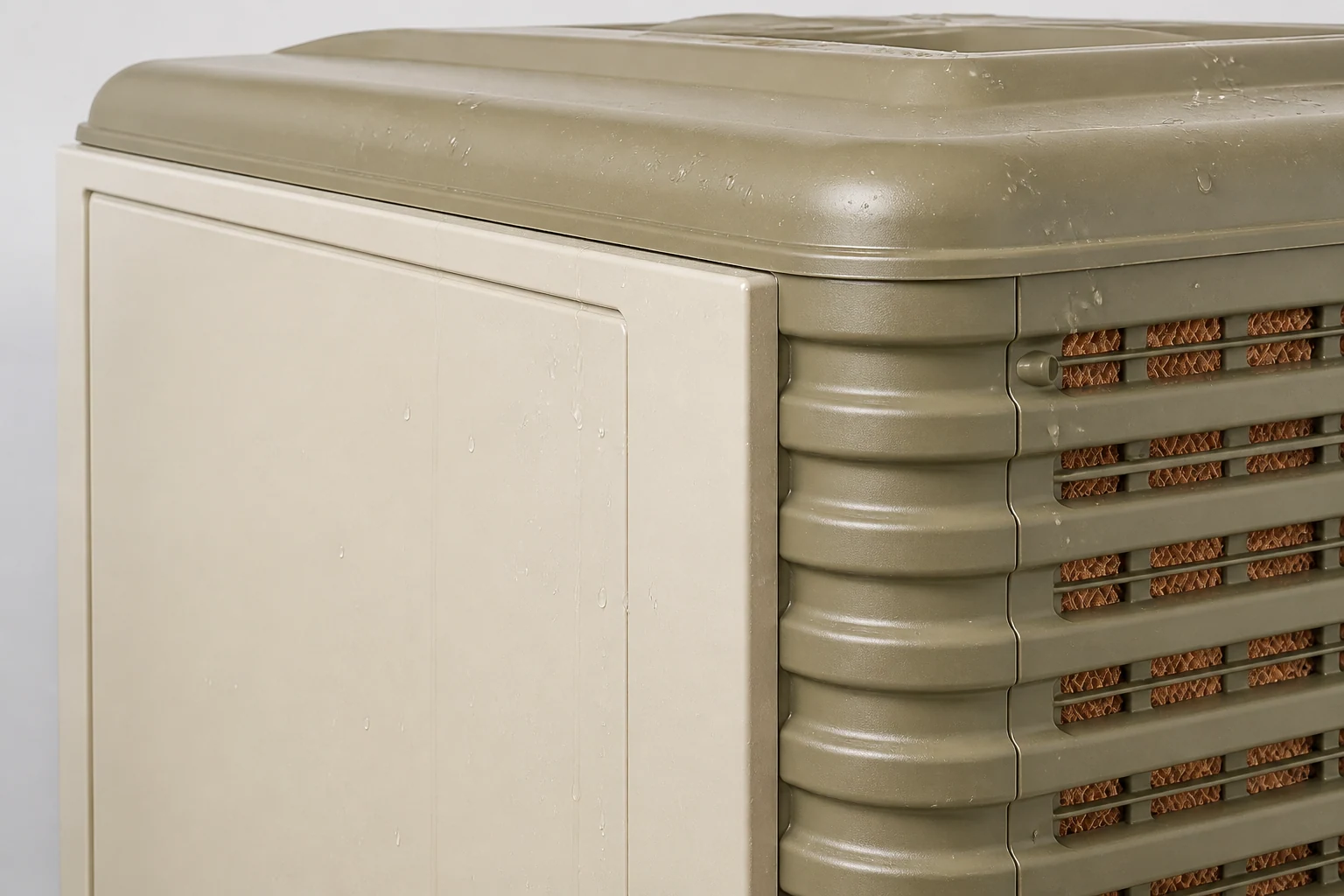

Lightweight, corrosion-resistant shell
Cabinet and volute are moulded in modified PP, so they resist corrosion; a net weight of 125 kg keeps wall or stand mounting and day-to-day servicing simpler.

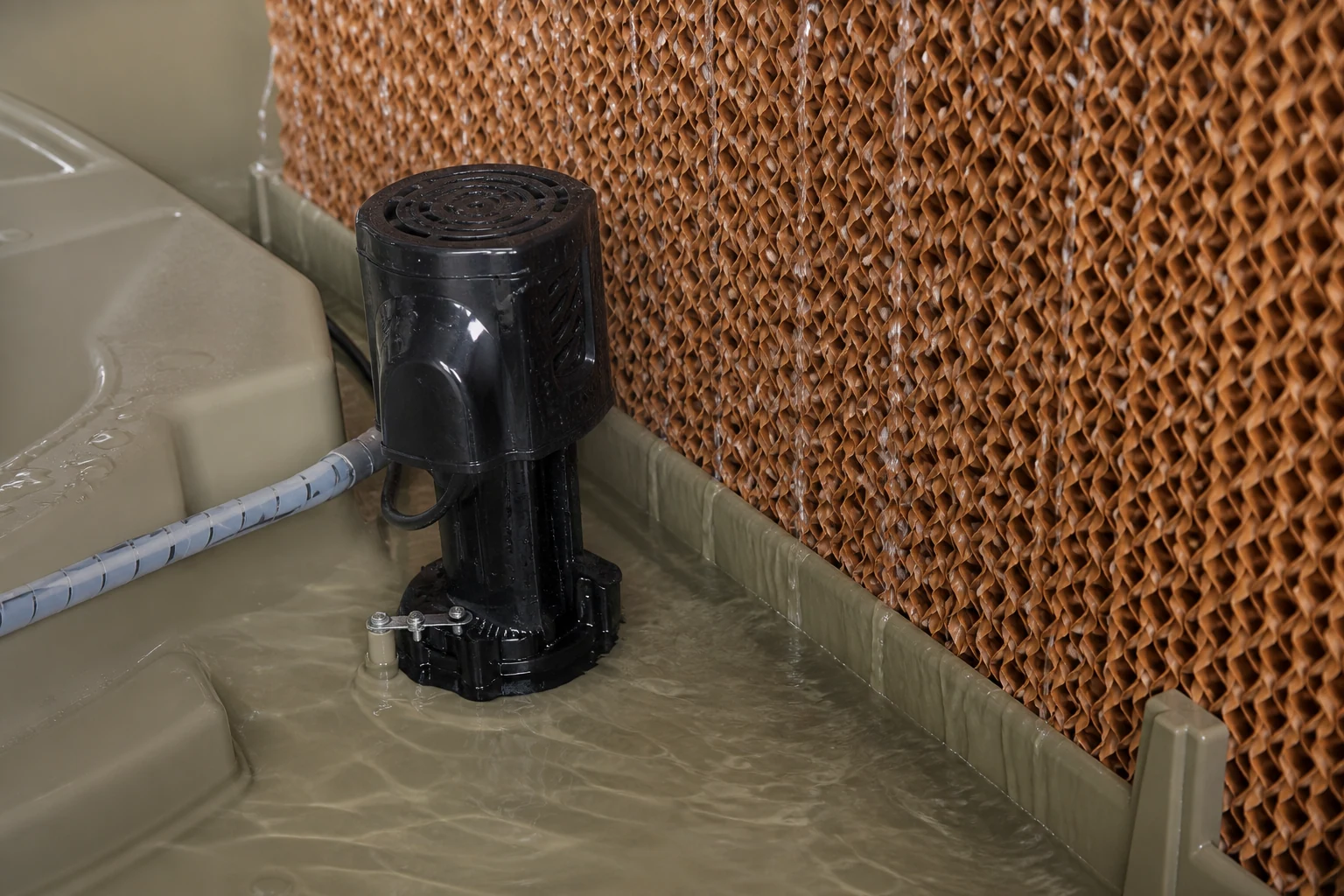

Automatic water, protected pump
A 40 L tank with automatic water inlet and drain, a pre-dust filter and pump protection support continuous running at 25–30 L/h water consumption.
Installation Scenarios

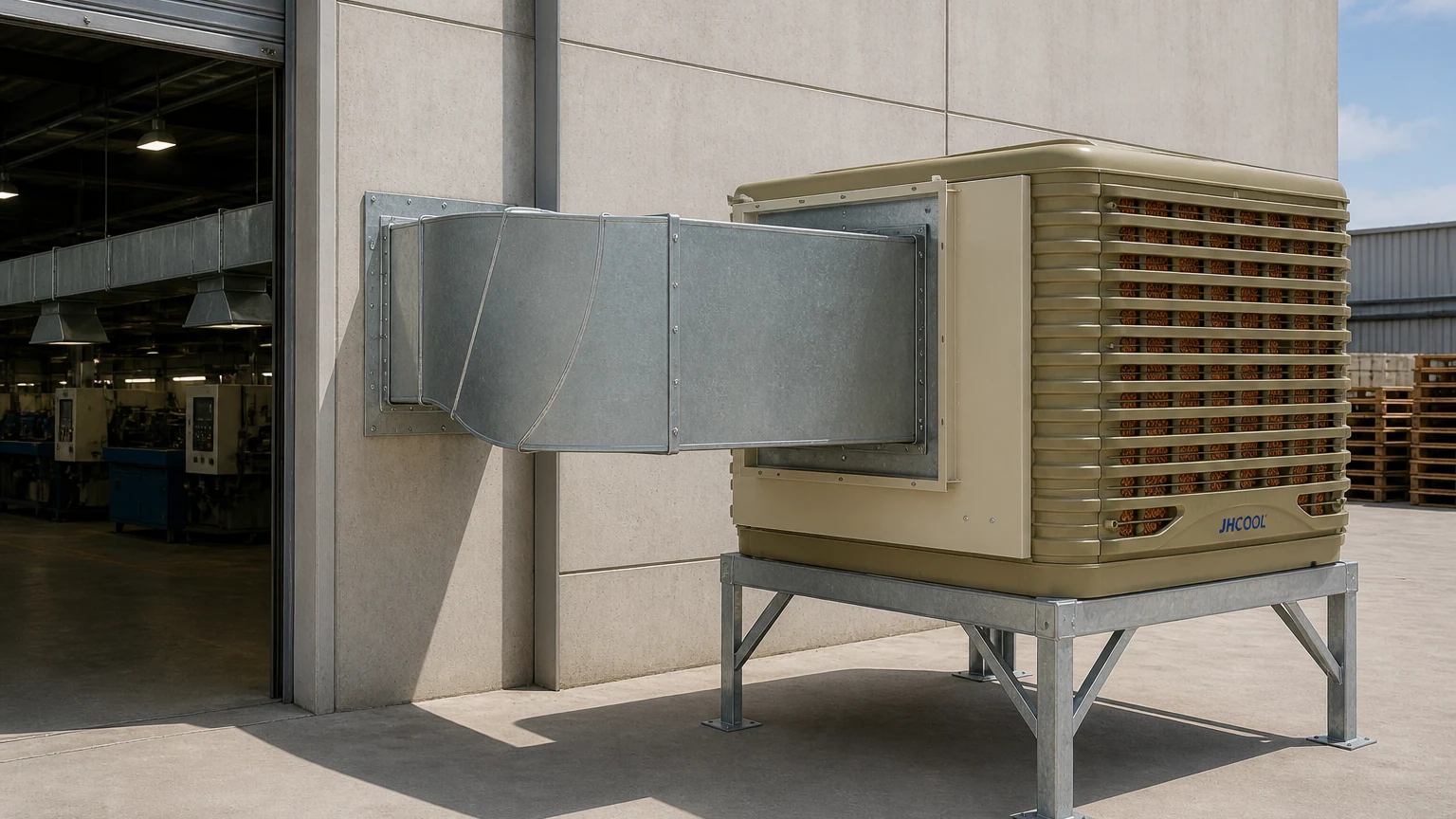

Factory production area
Exterior installation with ducted delivery into the workspace.

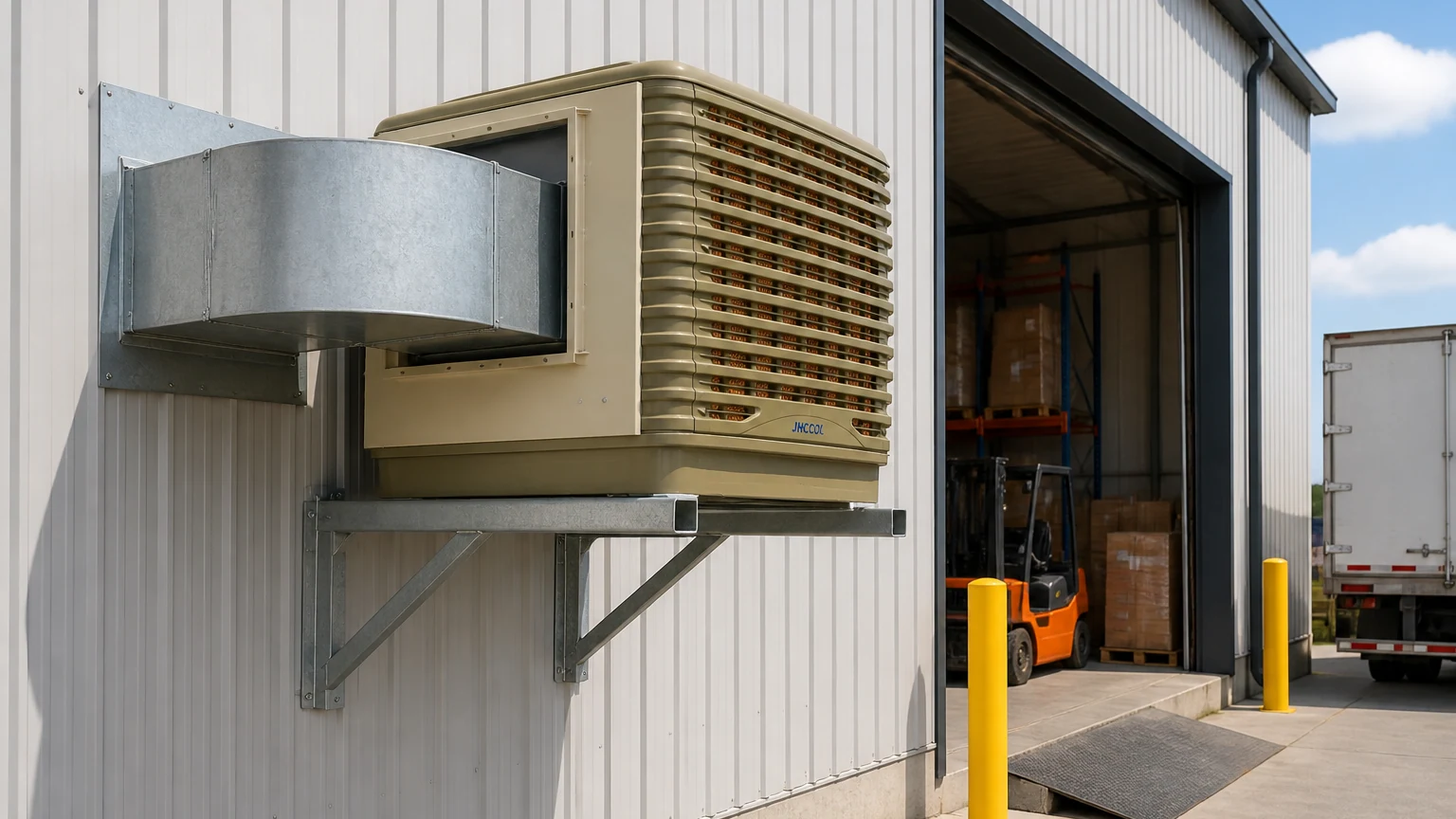

Logistics warehouse
Wall-mounted cooling for a broad warehouse work zone.
Technical Specifications
Airflow
25,000 m³/h
Power
3 kW
Coverage
250–300 m²
Dimension
1340 × 1390 × 1130 mm
Model
JH25LP-39S8
Shell Material
Modified PP
Static Pressure
250 Pa
Fan Type
Centrifugal
Speed Control
16 speeds (inverter)
Noise
≤ 78 dB(A)
Tank Capacity
40 L
Water Consumption
25–30 L/h
Voltage
380 V / 50 Hz / 3 phase
Control
Intelligent touchscreen
Net Weight
125 kg
Cooling Pad Size
5090-(840+30) × 900 × 120 mm
Vent Size
800 × 720 mm
Package Size
1360 × 1410 × 1280 mm
40HQ
16 units
Water Inlet and Drain
Automatic
Pre-Dust Filter
Automatic
Pump Protection
Yes
Certifications
Verified by TÜV Rheinland®
