150–200 m² coverage
A practical step between compact 18k and heavy-duty 30k systems.
1/3
Industrial Air Cooler
22 Series

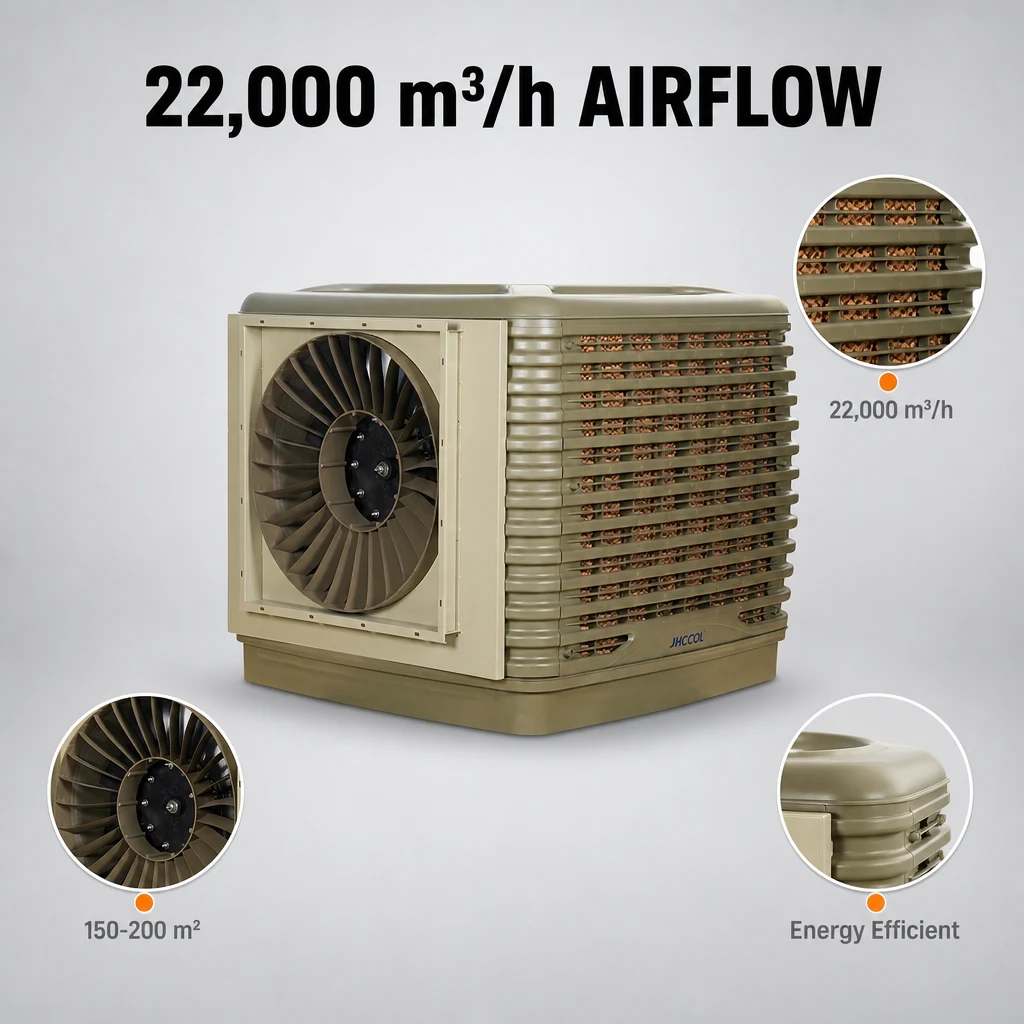

22,000 m³/h airflow commercial evaporative air cooler for large spaces
22,000 m³/h commercial evaporative air cooler built for large commercial spaces, warehouses, and industrial facilities. Available in multiple configurations.
Select Configuration
Fan Type
Power Phase
Speed / Control Type
Please select power phase first
Air Outlet Direction
Control Method
Housing Style
Selected Configuration:Please select all options
The 150–200 m² sweet spot
A versatile platform balancing airflow, pressure, and energy use for medium factories and public spaces.
1.5–3 kW options
Select economy or higher-output power according to site heat load.
Inverter-ready

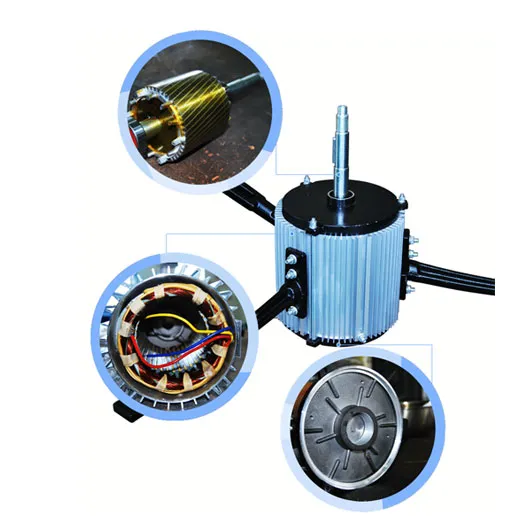

PMSM configurations match motor speed to changing cooling demand.
Axial or centrifugal
Prioritise open-space airflow or duct pressure on the same platform.
Four housing styles
A1, A2, B1, and B2 variants fit different building interfaces.
Core Advantages
Coverage without overcapacity
22,000 m³/h provides uniform cooling without paying for unused 30k capacity.
Inverter efficiency
Variable-speed PMSM options respond to real demand and reduce part-load energy use.
Volume or pressure

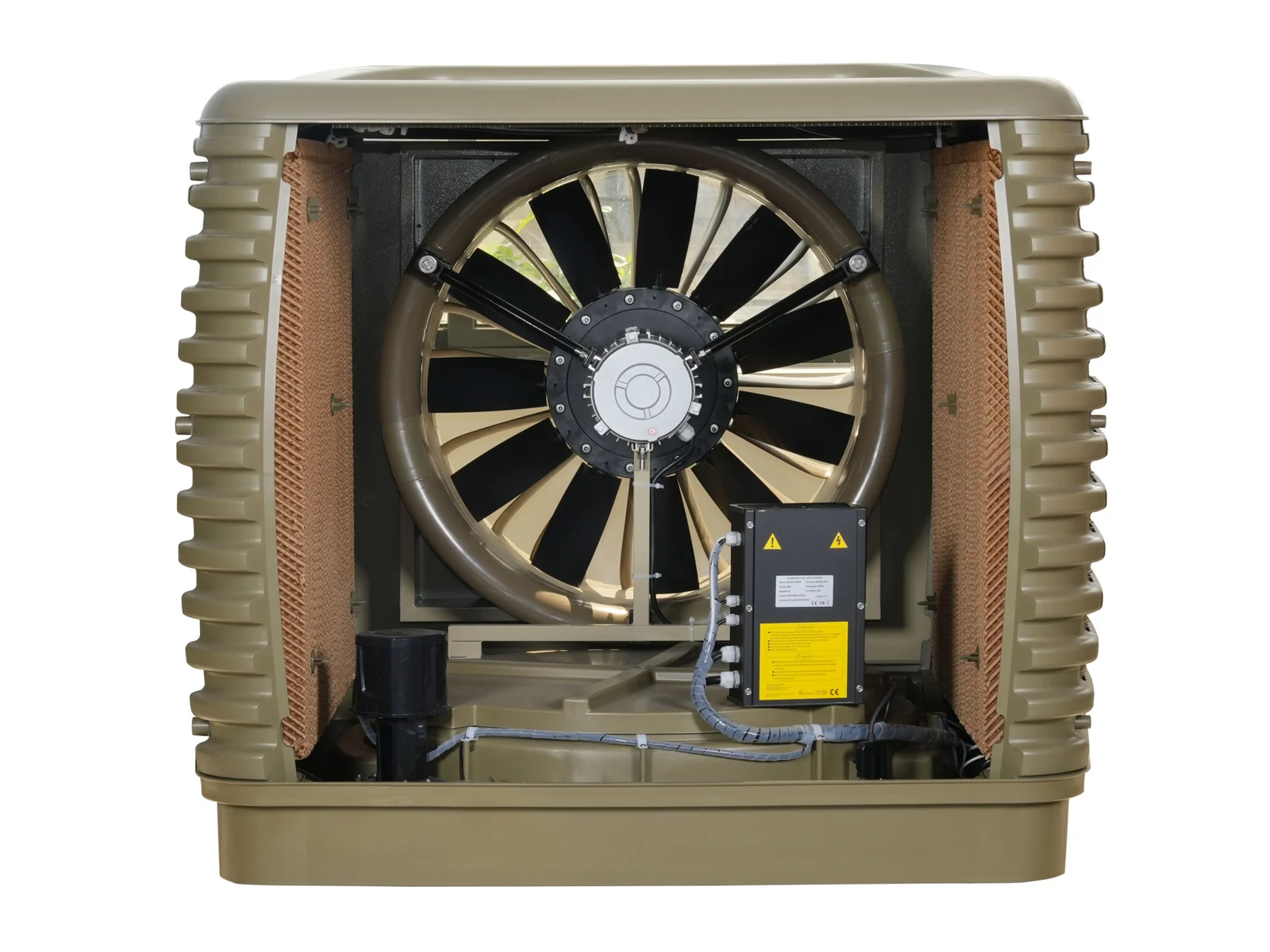

Choose axial for open areas or centrifugal for ducted delivery and longer throw.
Low-noise airflow
Aerodynamic blade geometry reduces turbulence for more comfortable occupied spaces.
Installation Scenarios

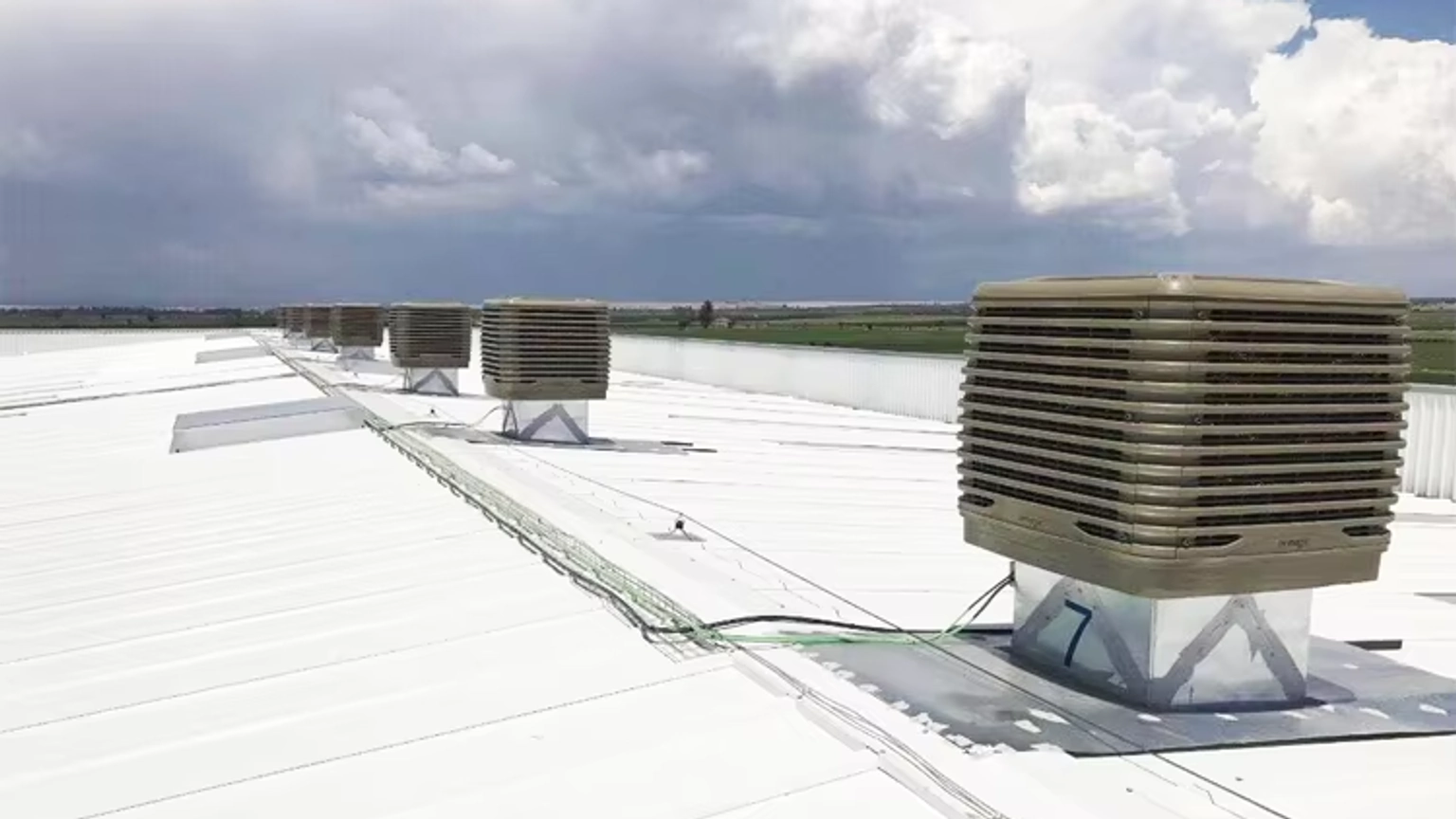

Medium factory
Wall-mounted cooling across an active production zone.

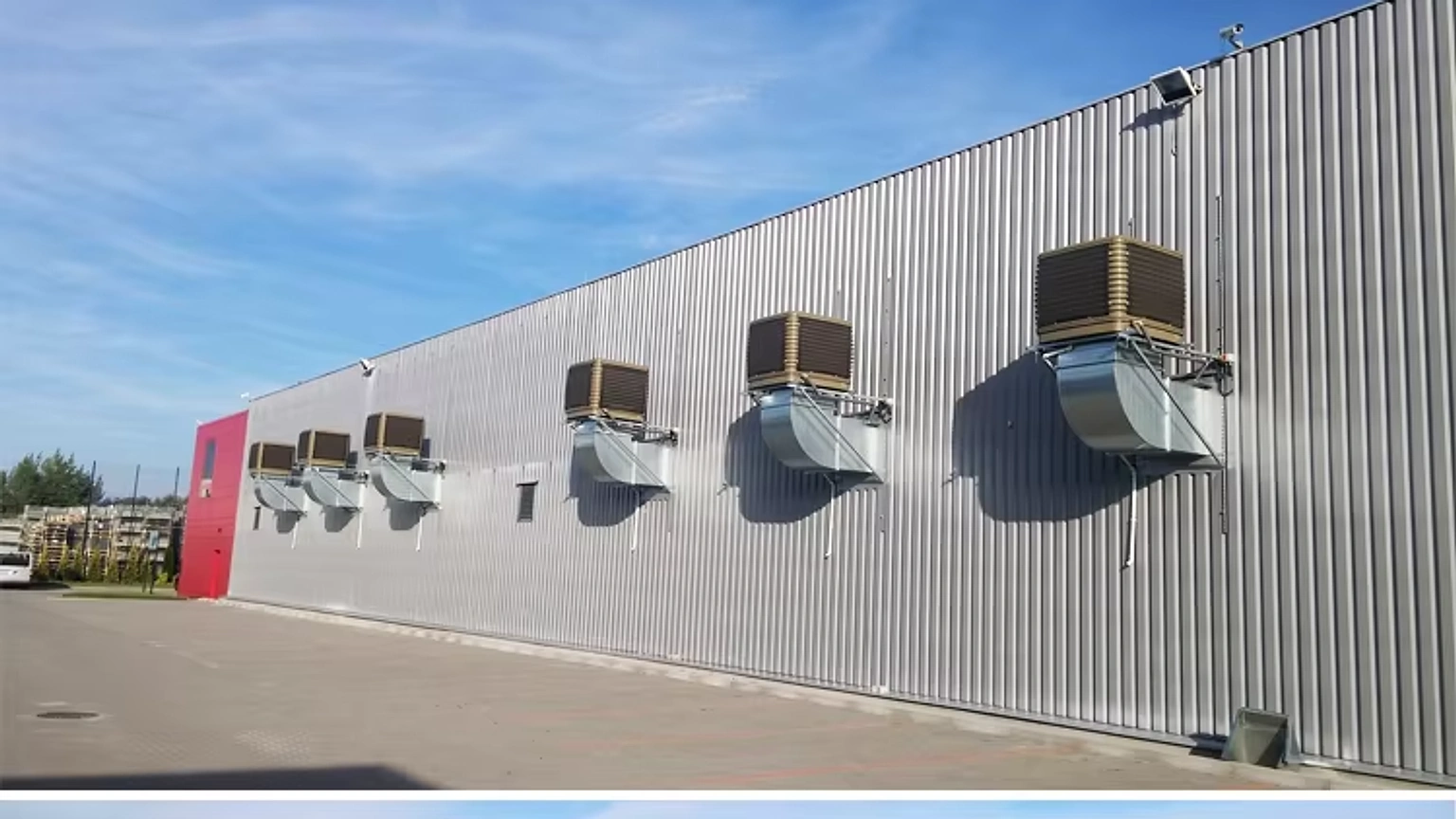

Sports hall
Broad, comfortable airflow for a large occupied public space.
Technical Specifications
Airflow
22,000 m³/h
Coverage
150-200 m²
Power
1.5kW - 3kW
Dimension
Configurable
Fan Type
Axial / Centrifugal
Shell Material

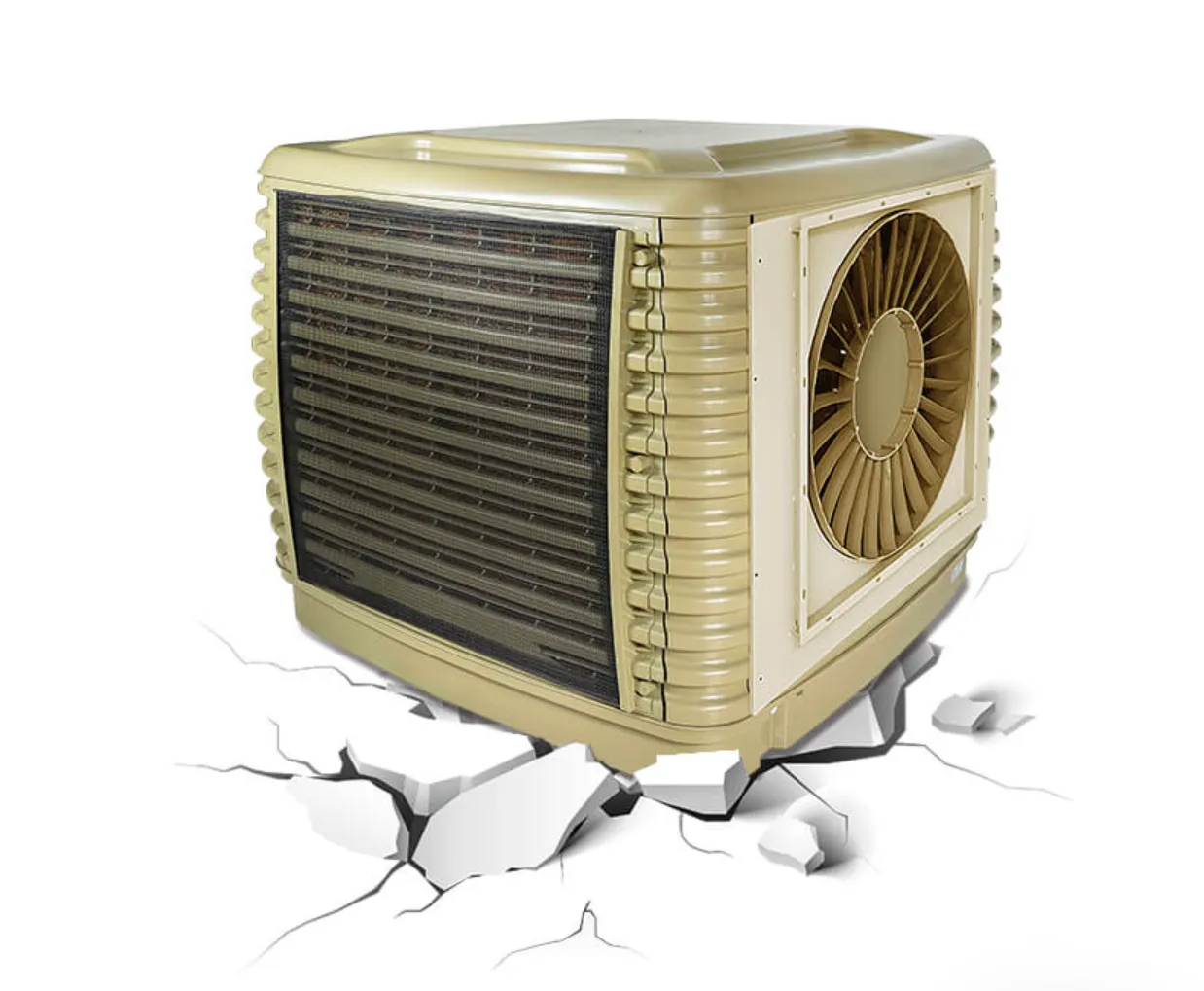

Plastic / Metal
Air Discharge

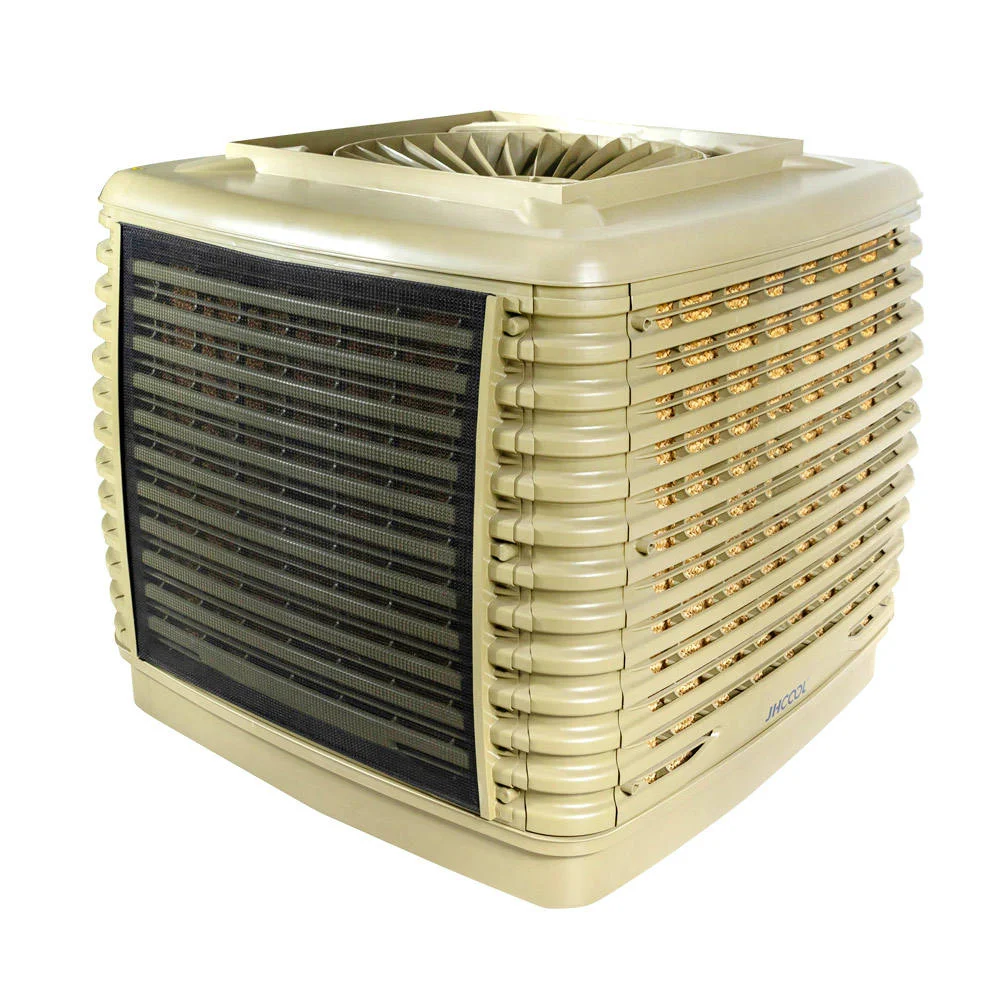

Top / Side / Down
Speed Control
Single / Multi / Inverter
Voltage
220V / 380V
Shipping
Sea freight · Land freight · Air freight
Delivery
15-35 days
Warranty
1 Year for machinery warranty
Payment
T/T or L/C at sight
Certifications
Verified by TÜV Rheinland®
