Industrial Air Cooler
18 Series
18,000 m³/h airflow commercial evaporative air cooler for workshops and factories
18,000 m³/h commercial evaporative air cooler for workshops, factories, and large commercial spaces. Multiple configurations of air outlet, motor speed, voltage, and fan type available.
Select Configuration
Fan Type
Power Phase
Speed / Control Type
Please select power phase first
Air Outlet Direction
Control Method
Housing Style
Selected Configuration:Please select all options
Product Highlights

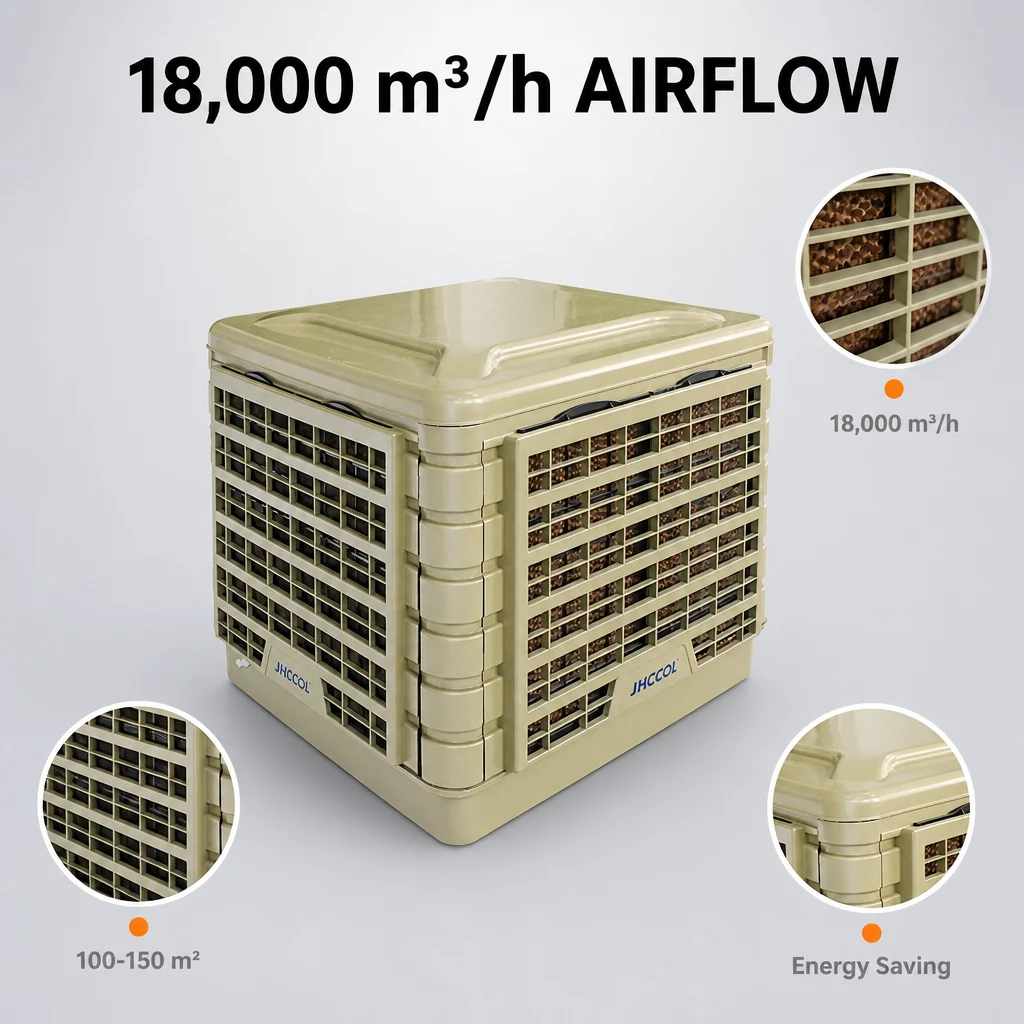

18,000 m³/h targeted cooling
Focused airflow for 100–150 m² workshops, shops, and commercial kitchens.
1.1 kW ultra-low power
An economical entry point for daily industrial evaporative cooling.
10+ configurations
Choose fan type, discharge direction, phase, speed control, and housing.

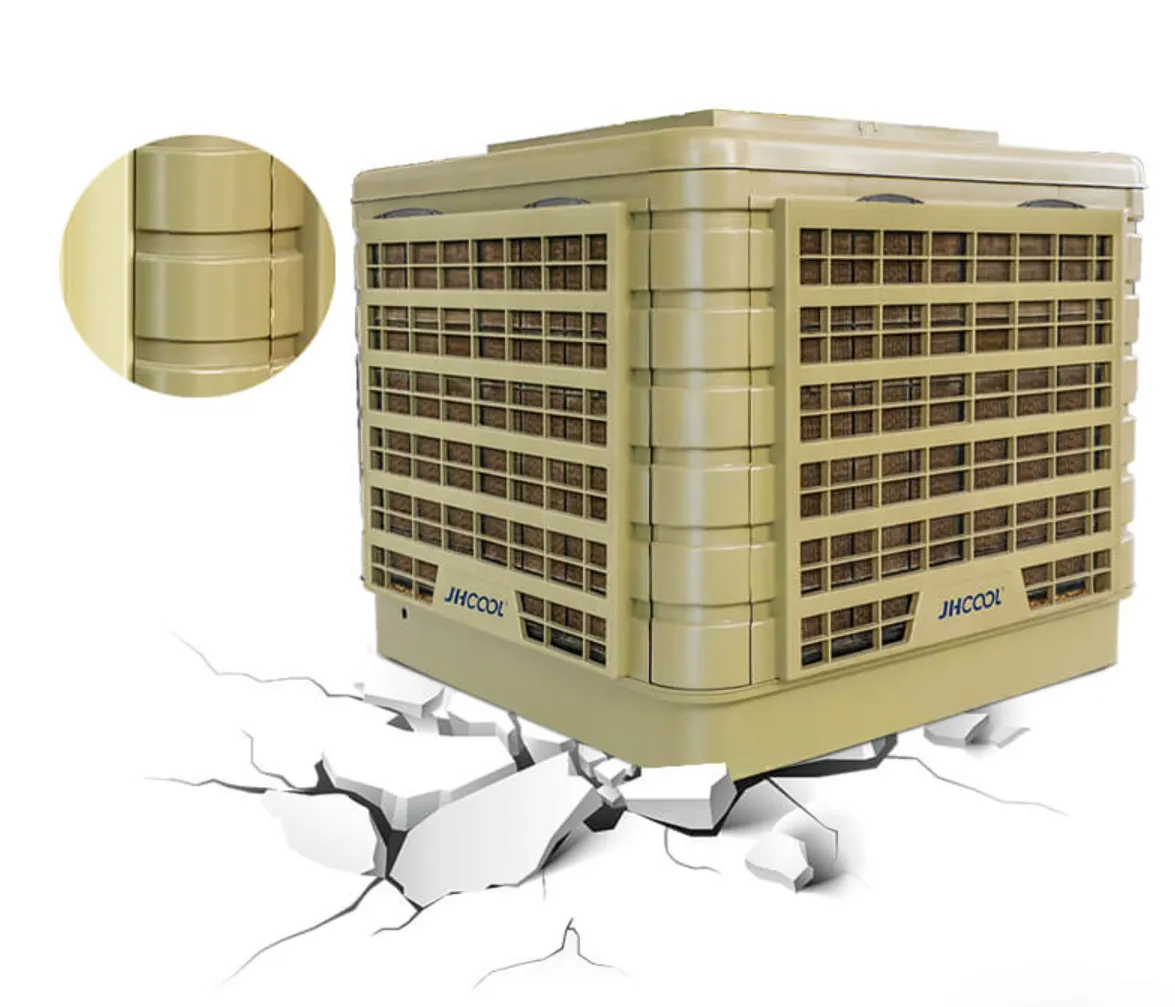

UV-resistant PP body
Modified engineering plastic is designed for long-term outdoor exposure.
CORE ADVANTAGES
Built around your airflow.
Match the outlet to the building, the fan to the ductwork, and the drive to daily demand. Four details make the 18 series a flexible cooling platform.

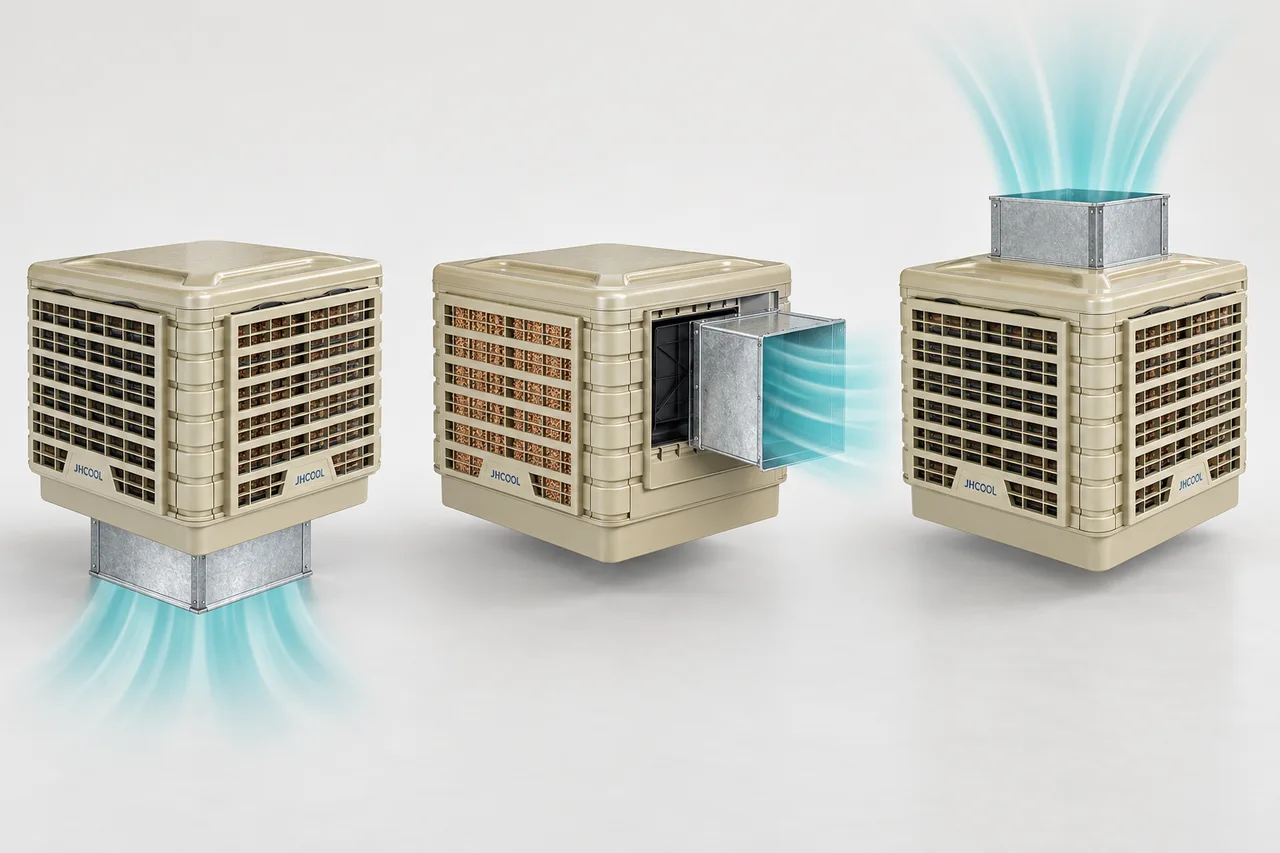

Installation flexibility
Three outlets. More ways to fit.
Route cooled air where the building needs it. Top, side and down discharge options let you plan roof, wall or duct connections while keeping valuable indoor floor space free.

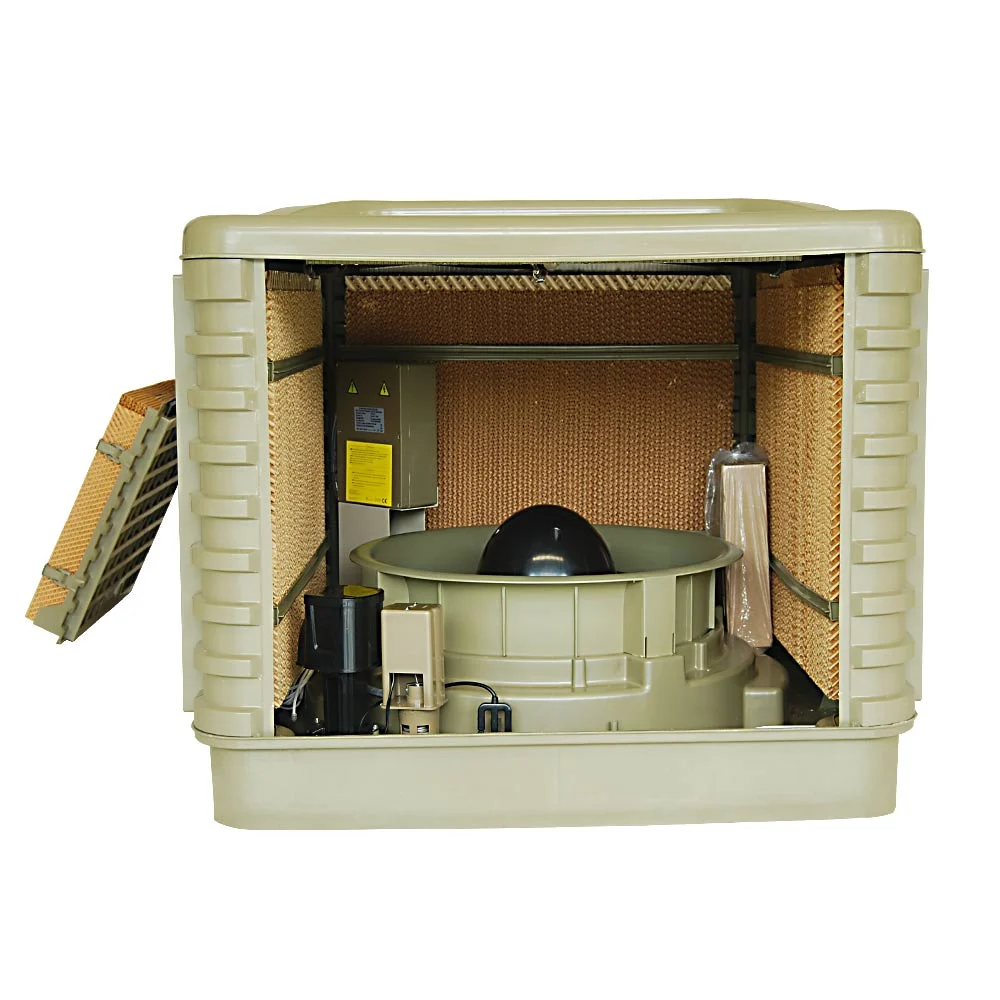

- Down discharge
- Connect through the roof to the supply duct below.

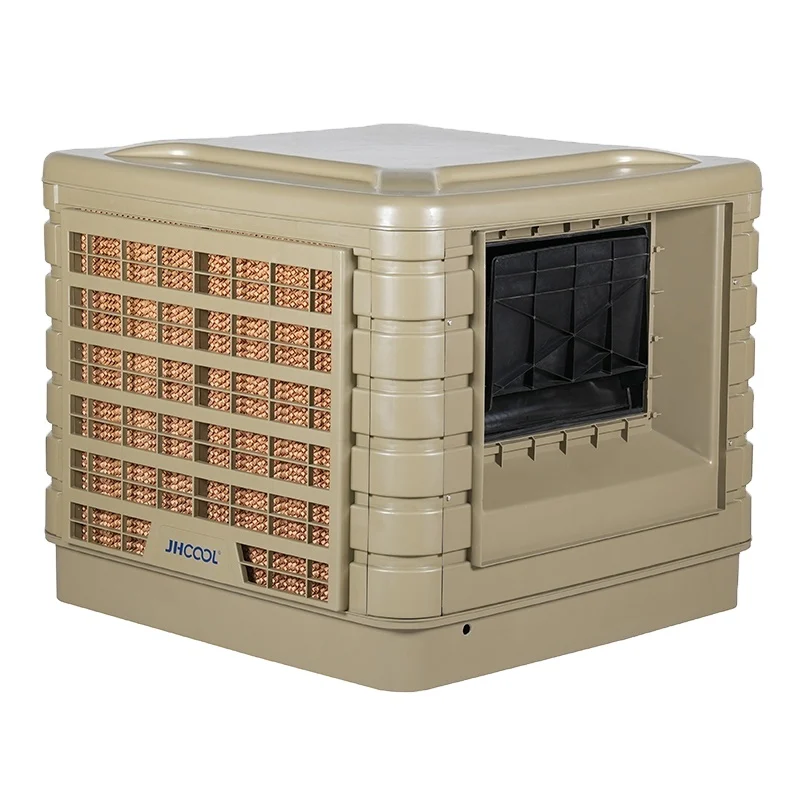

- Side discharge
- Feed horizontally through a wall or into a side duct.

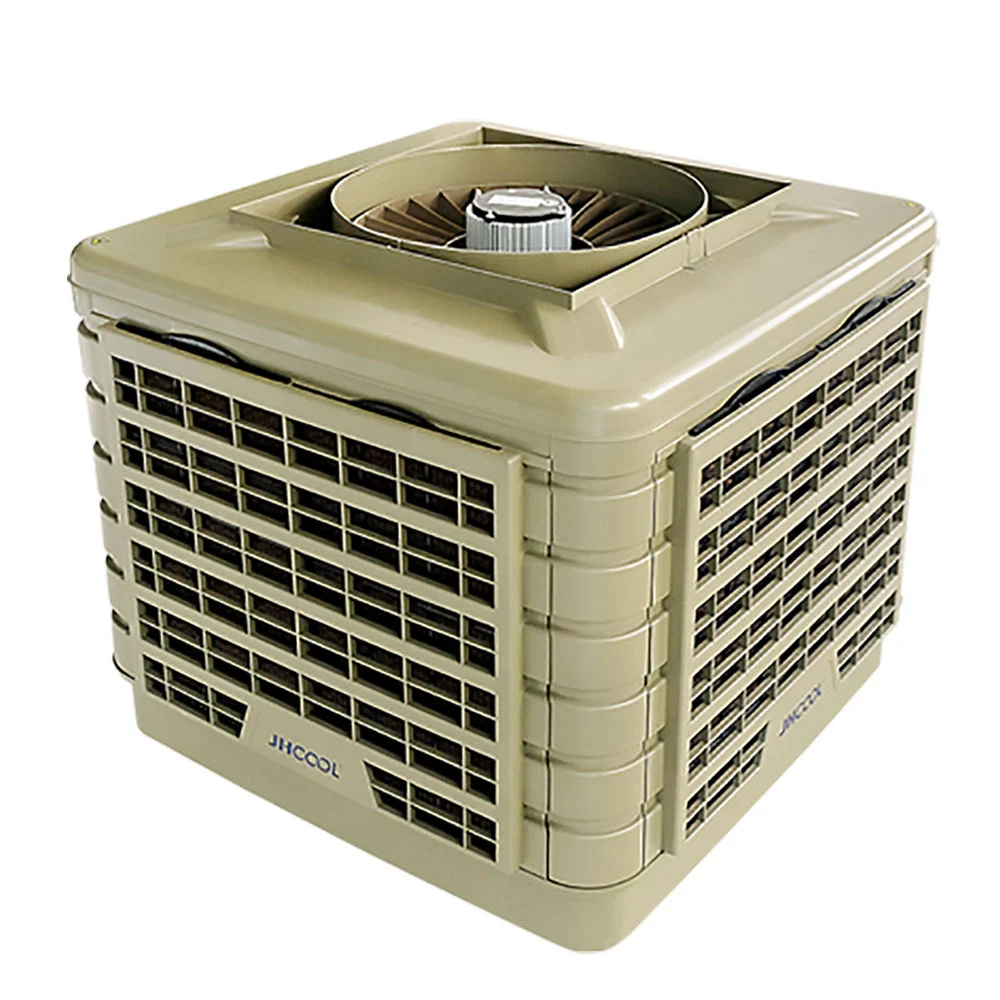

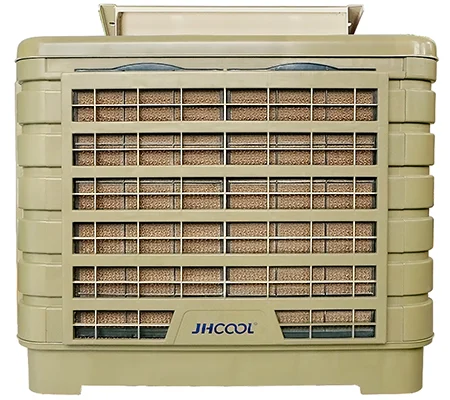

- Top discharge
- Connect to overhead ductwork from the upper outlet.

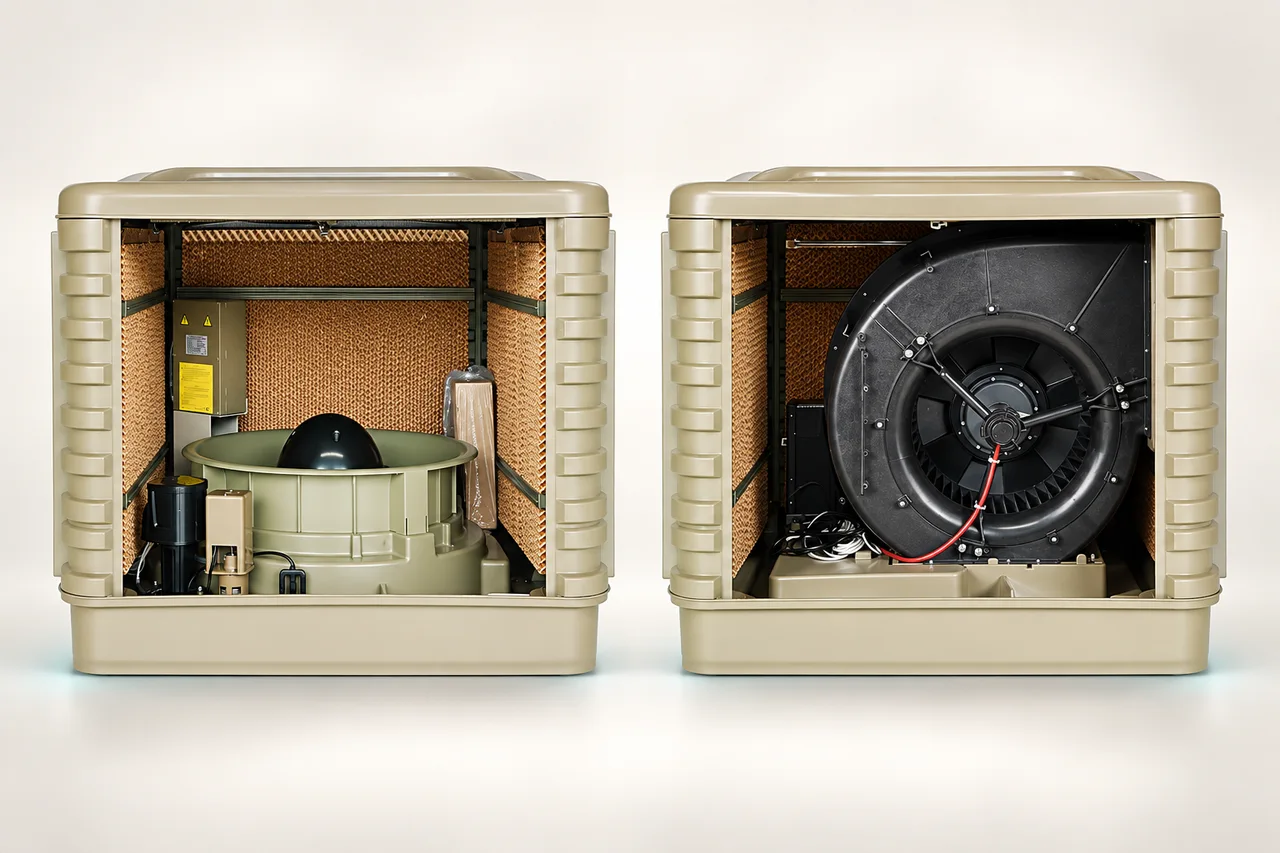

Axial or centrifugal
Choose how the air moves.
Fan selection is about the air path, not just the airflow figure. The 18 series offers axial and centrifugal configurations so you can match the fan to the resistance of your installation.

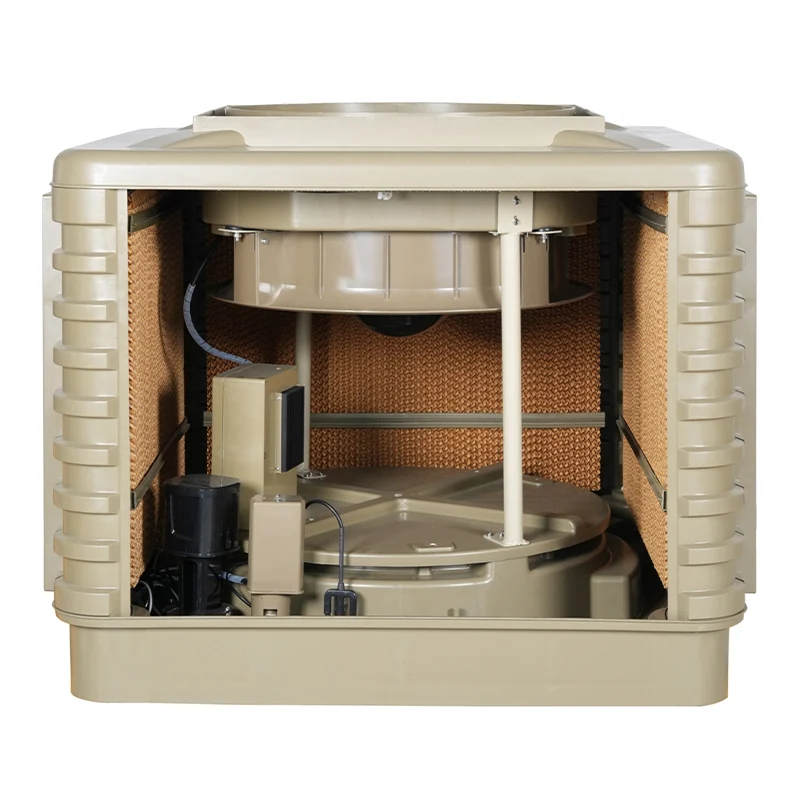

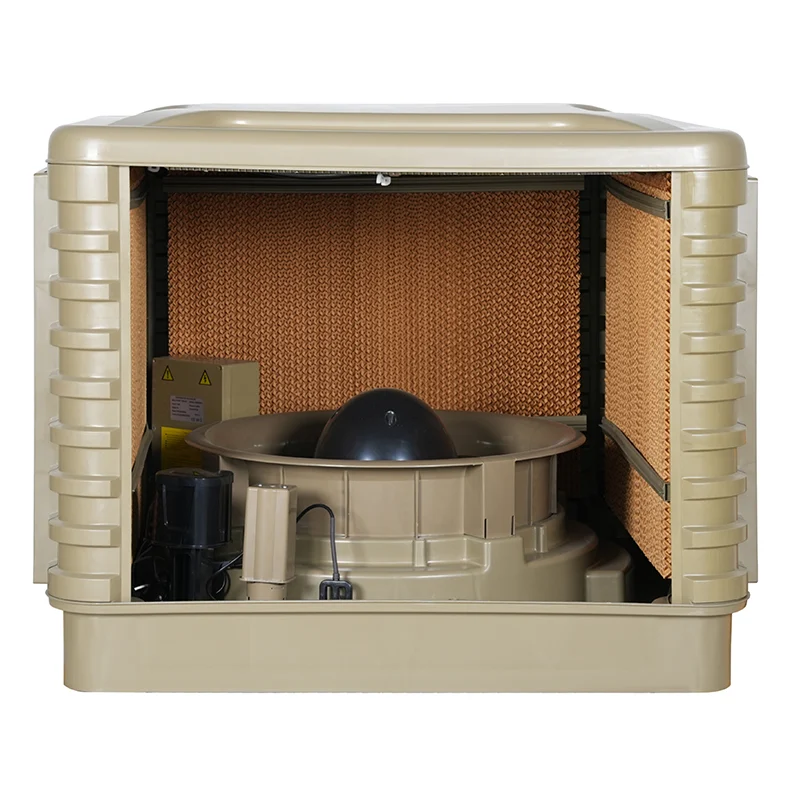

- Axial fan
- A direct airflow path for high-volume ventilation and lower-resistance duct layouts.

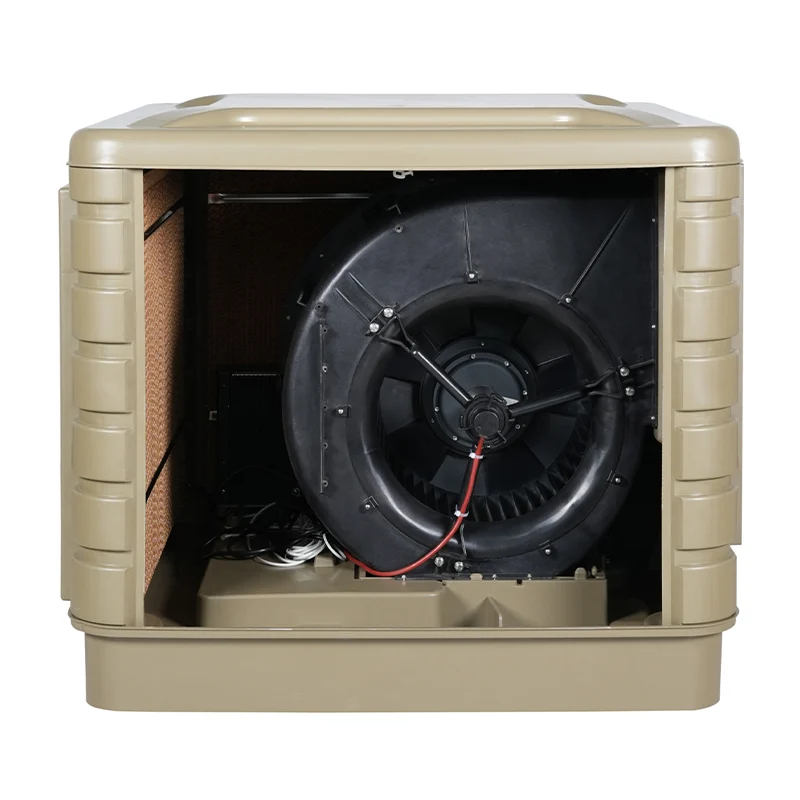

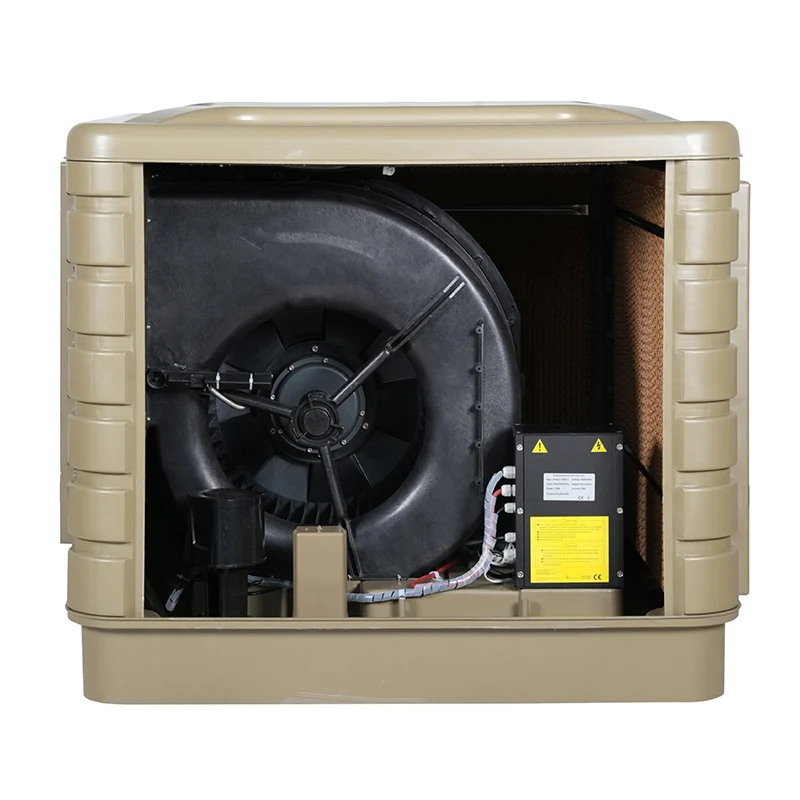

- Centrifugal fan
- A scroll housing builds pressure for ducted air delivery. Select against the project’s required airflow and pressure.
BLDC & variable speed
A smarter drive for changing demand.
Brushless DC motor options bring electronic speed control to the 18 series. Match the drive and fan configuration to the cooling load instead of treating every motor as the same.
- 16-speed control
- On equipped models, adjust airflow as occupancy and heat load change.

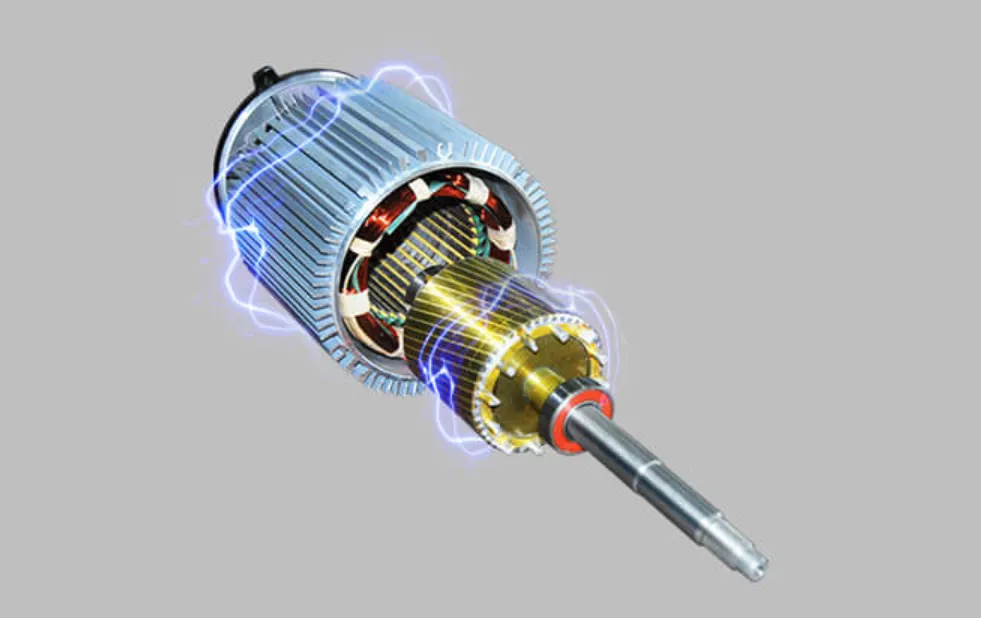

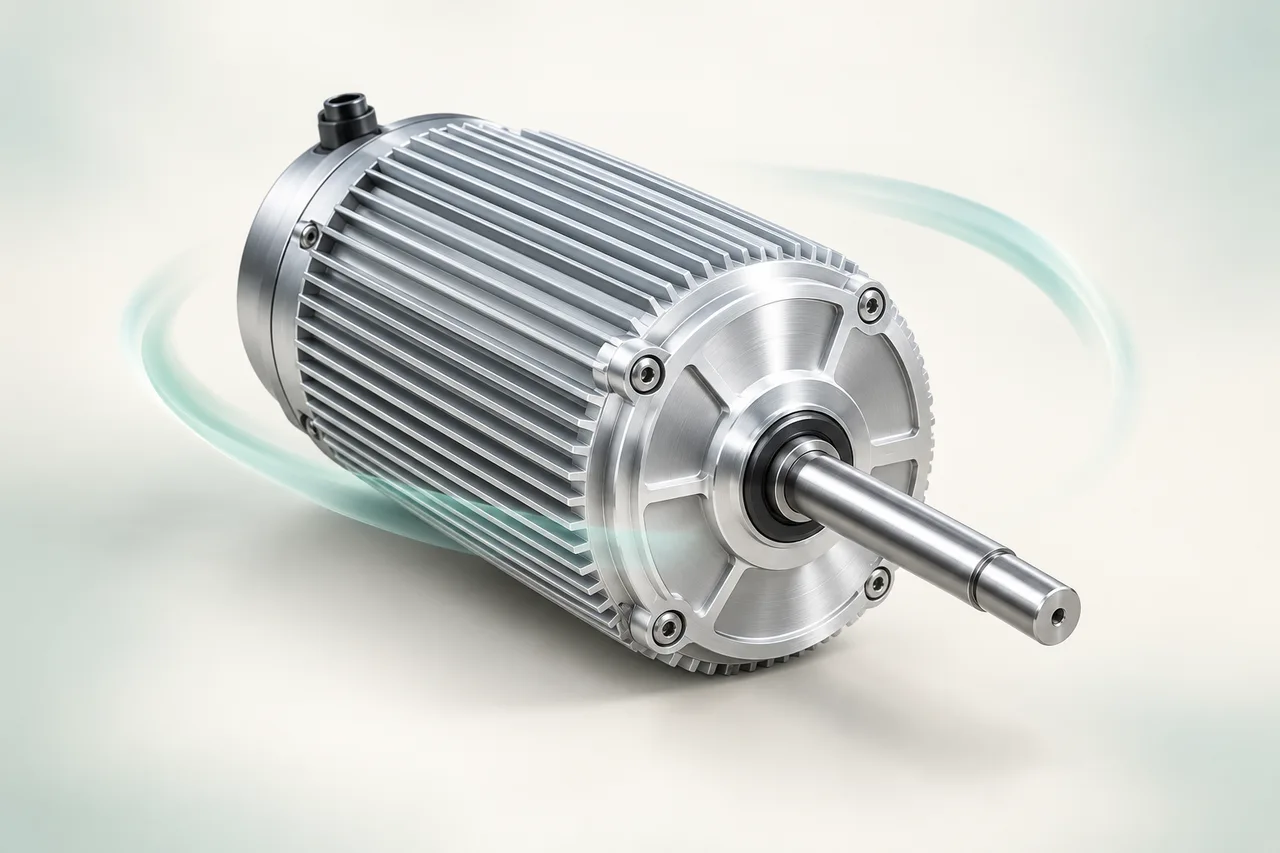

- Sealed alloy housing
- The BLDC motor’s aluminum-alloy enclosure supports heat dissipation and protects the motor assembly.

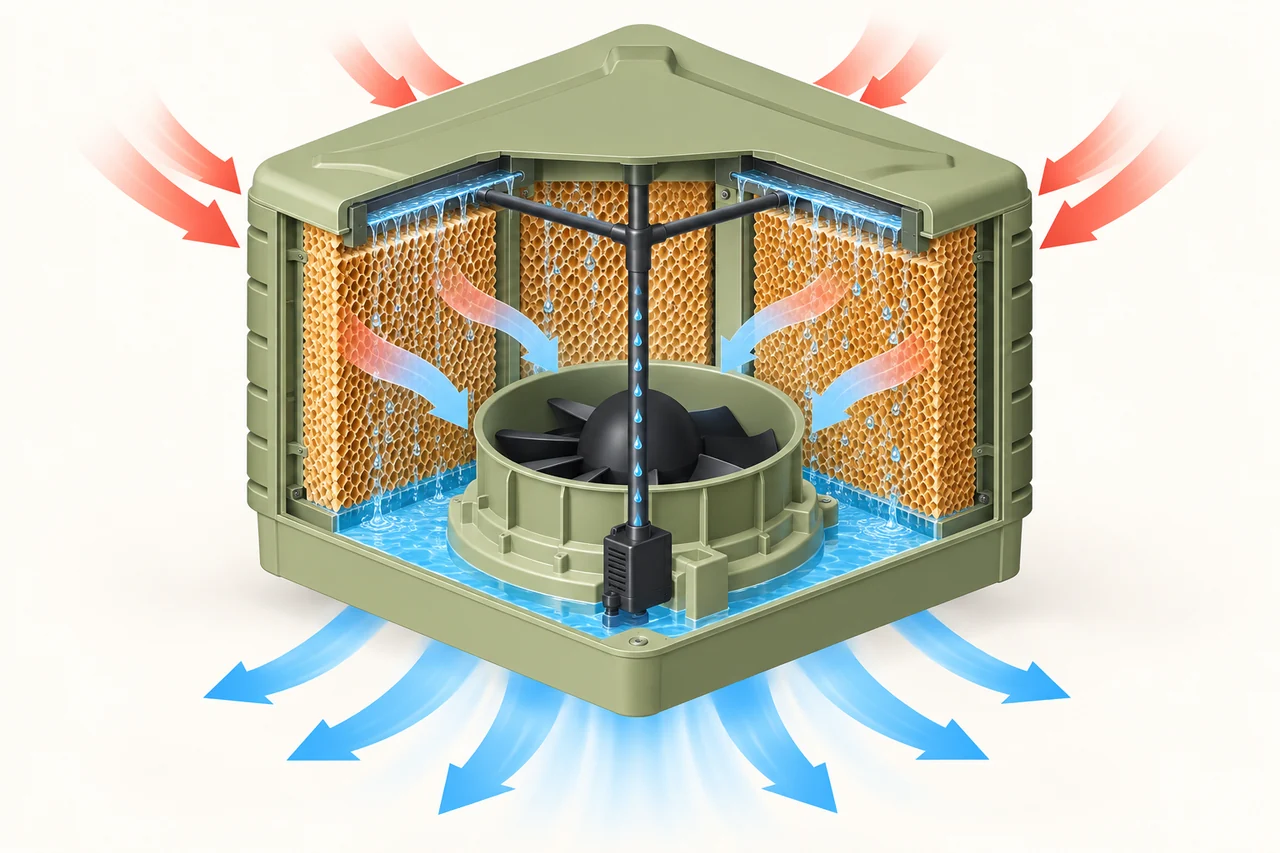

Cooling & water management
Water cooling, thoughtfully maintained.

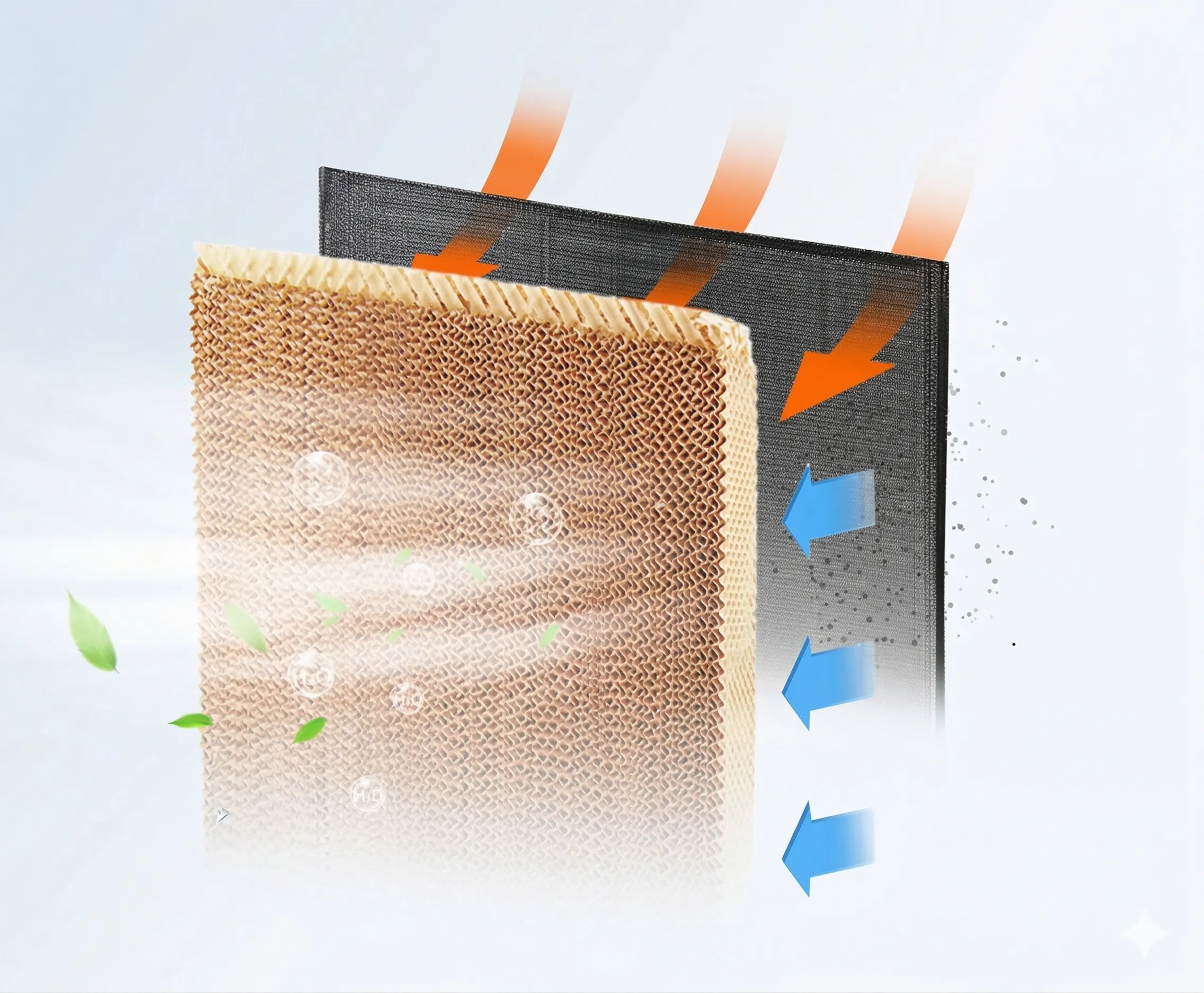

A dust filter helps protect the honeycomb cooling pads, while the open distributor spreads water evenly across the media. Automatic drainage supports routine water management.
- Even pad wetting
- The open water distributor provides a smooth flow and is designed to resist blockage.

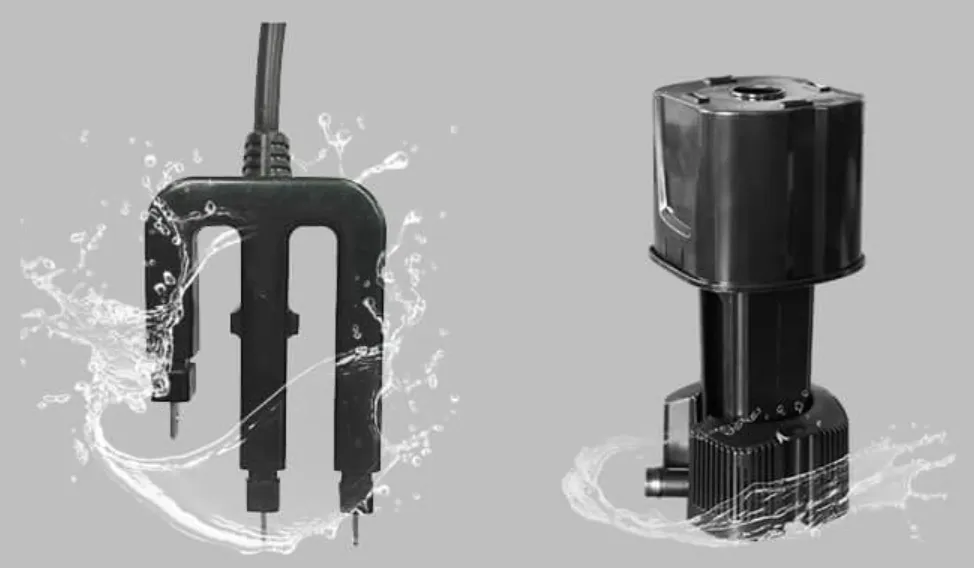

- Scheduled drainage
- Equipped controllers offer an 8-hour default drain cycle and an adjustable 0–48-hour cleaning interval. Regular inspection and cleaning remain necessary.
Series options shown. Fan, outlet, motor and controller combinations depend on the selected model; confirm the configuration for your project.
Installation Scenarios
Targeted cooling for small workshops, shops, and kitchens where every square metre matters.

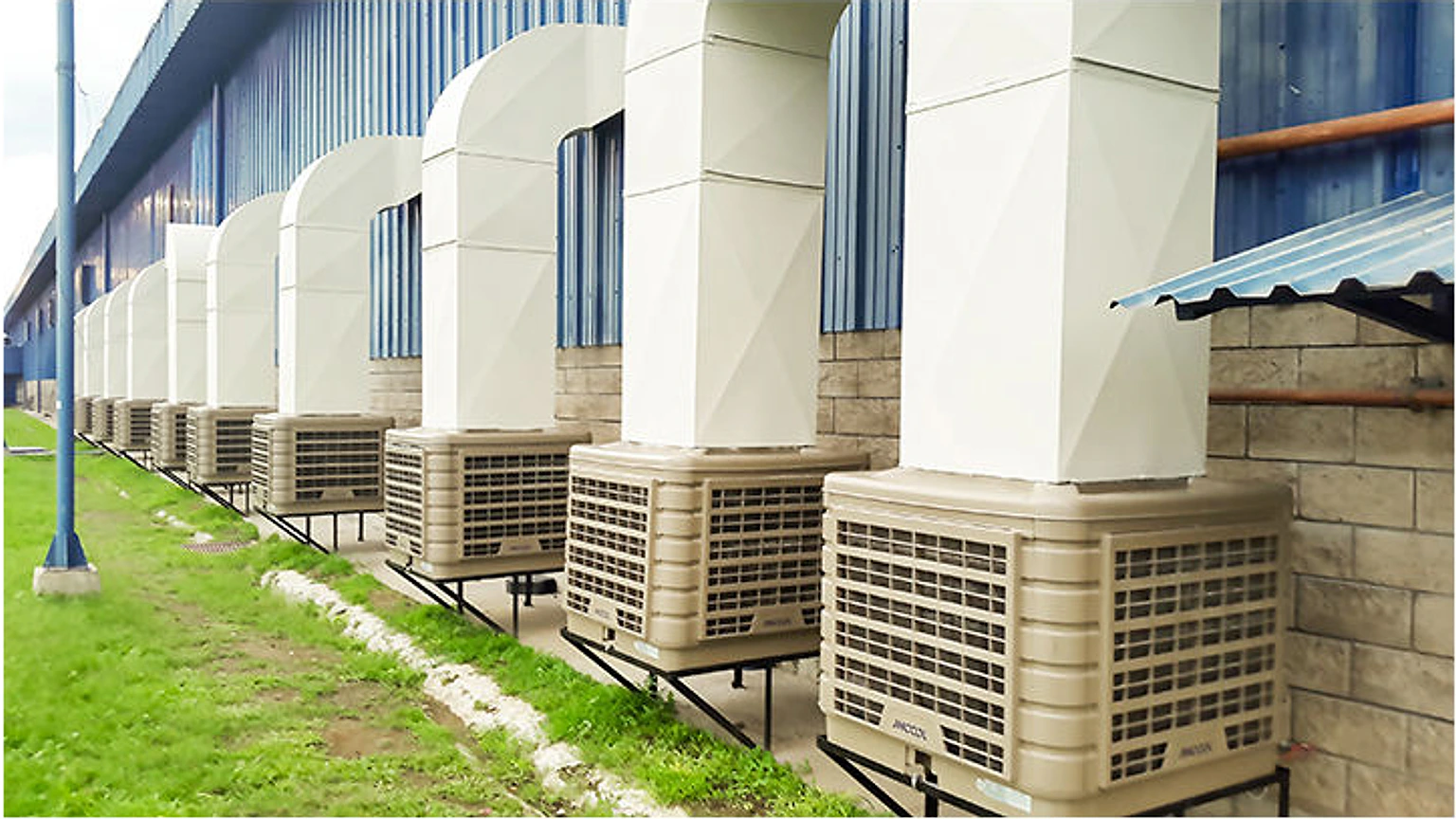

Small workshop
Exterior wall mounting releases more room for active work.

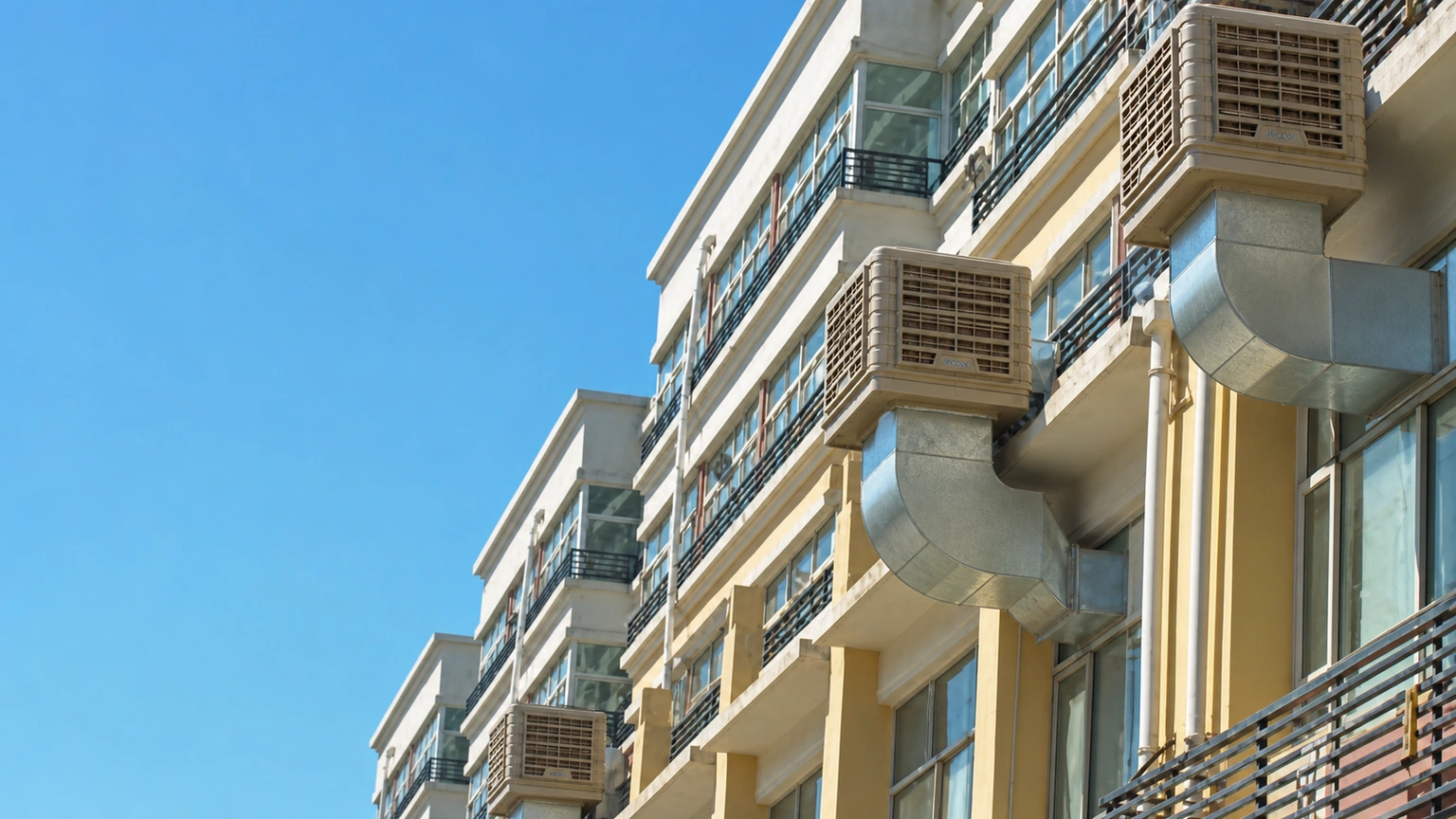

Restaurant and retail
A compact solution for space-constrained service areas.
Technical Specifications
Airflow
18,000 m³/h
Coverage
100-150 m²
Power
1.1kW - 2.2kW
Dimension
Configurable
Fan Type
Axial / Centrifugal
Shell Material
Plastic / Metal
Air Discharge
Top / Side / Down
Speed Control
Single / Multi / Inverter
Voltage
220V / 380V
Shipping
Sea freight · Land freight · Air freight
Delivery
15-35 days
Warranty
1 Year for machinery warranty
Payment
T/T or L/C at sight
Certifications
Verified by TÜV Rheinland®
